| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

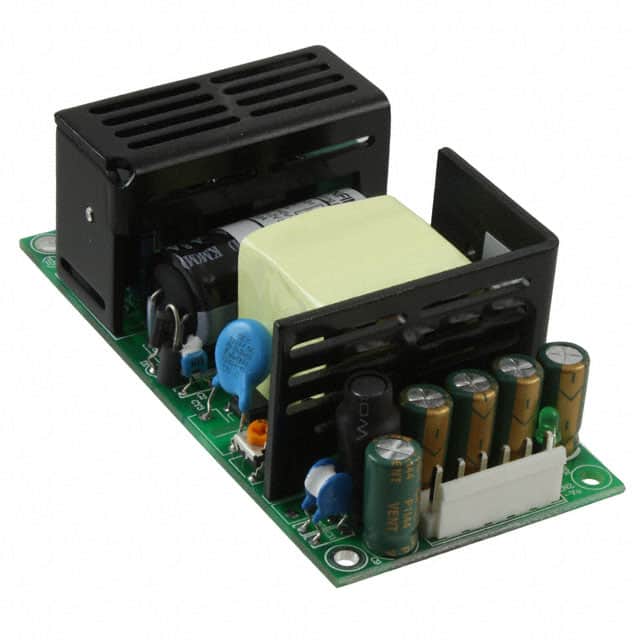

The CUI Inc. VOF-80-24 is an 80W AC-DC power supply designed for various applications. It provides a single output of 24V with a maximum current of 3.33A.
This power supply operates with a universal input voltage range of 85-264 Vac and boasts an efficiency of up to 87%. Key electrical specifications include line regulation of ±0.5% and load regulation of ±1%. It also features over-current, over-voltage, and short-circuit protections.
The VOF-80-24 has a compact mechanical design with dimensions of 102.0mm x 51.0mm x 32.6mm, suitable for chassis mounting. The operating temperature range is 0°C to 60°C with derating, and it has a storage temperature range of -20°C to 85°C.
Safety approvals include CE, cURus, and GS, and it is RoHS3 compliant. This power supply is suitable for ITE (Commercial) applications.
The CUI Inc. VOF-80-24 has a nominal output voltage of 24 Vdc.
The VOF-80-24 can provide a maximum output current of 3.33 A.
The VOF-80-24 delivers a maximum output power of 80 W.
The VOF-80-24 accepts a universal input voltage range of 85-264 Vac.
The CUI Inc. VOF-80-24 power supply has a typical efficiency of 87%.
The VOF-80-24 operates within a temperature range of 0°C to 60°C, with derating.
Yes, the VOF-80-24 is RoHS3 compliant.
