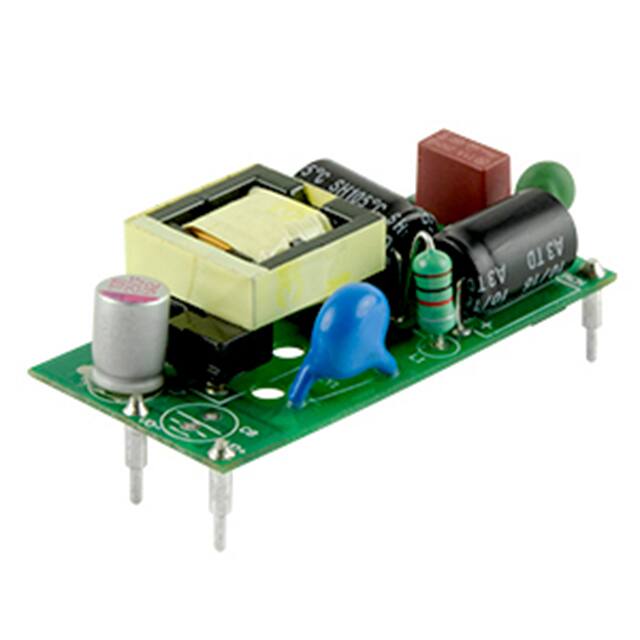

The CUI Inc. VOF-6B-S12 is an AC-DC power supply from the VOF-6B series, delivering up to 6W of continuous power with a single 12V DC output. It is designed for universal input, accepting a wide voltage range from 85 to 264 VAC (120 to 370 VDC) and operating at frequencies between 47 and 63 Hz.
This converter offers an output current of up to 500mA and features essential protections including short circuit, over voltage, and over current protection. Its efficiency is rated at a typical 79.03%. The compact open-frame design makes it suitable for integration into various systems.
Key electrical specifications include a line regulation of ±1% and a load regulation of ±4%. The operating temperature range is -25°C to 70°C with derating. Safety and compliance are supported by approvals such as CB Scheme, EN, FCC, IEC, and UL, with an isolation voltage of 4000 Vac.
The VOF-6B-S12 is mounted via through-hole and comes in a 4-DIP Module package. Its dimensions are 48.6mm x 23.3mm x 16.2mm. This model is suitable for ITE (Commercial) applications.
85-264 VAC or 370 VDC.
12 Vdc at 500 mA.
-25°C to 70°C with derating.
4-DIP Module, through-hole mounting.
Typical 79.03%.
Over current protection at 110% and short circuit protection with hiccup mode and auto recovery.
4000 Vac input to output.
