| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

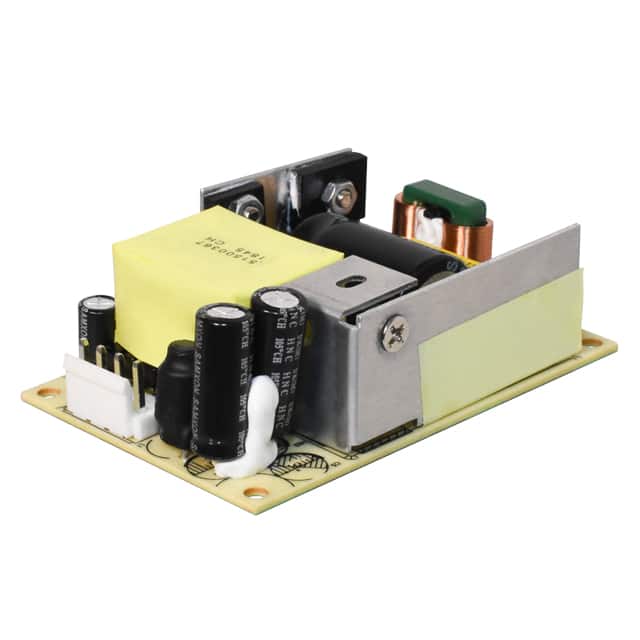

The CUI Inc. VOF-60C-S5 is an open-frame AC-DC power supply designed for ITE (Commercial) applications. It offers a single 5V output with a maximum current of 10A and a power rating of 50W. The unit operates with a universal input voltage range of 85-264 VAC and achieves a typical efficiency of 80% at 230 Vac input.
Key electrical specifications include a low input current, inrush current protection, and a no-load power consumption of 0.5W. It provides essential protections such as over-voltage, over-current, and short-circuit protection with auto-recovery features. The power supply also features a high isolation voltage of 3000 Vac between input and output.
Designed for chassis mounting, this AC-DC converter has dimensions of 76.2mm x 50.8mm x 30.0mm. It operates within a temperature range of -25°C to 70°C with derating. Compliance includes CISPR32/EN55032 Class B for emissions and IEC/EN/UL 62368-1 safety certification.
The VOF-60C-S5 has an output voltage of 5 Vdc.
The maximum output current for the VOF-60C-S5 is 10000mA.
The VOF-60C-S5 has a power rating of 50W.
The VOF-60C-S5 accepts a universal input voltage range of 85 to 264 Vac.
The typical efficiency of the VOF-60C-S5 at 230 Vac input is 80%.
The dimensions of the VOF-60C-S5 are 76.2mm x 50.8mm x 30.0mm.
The VOF-60C-S5 operates in a temperature range of -25°C to 70°C with derating.
