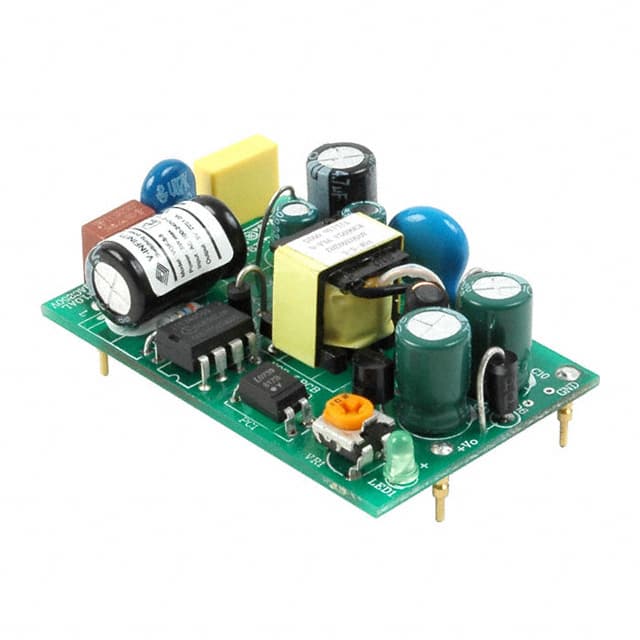

The CUI Inc. VOF-6-12 is a versatile AC-DC power supply from the VOF-6 series, delivering a 12V output with a maximum power of 6W. It is designed for broad applicability with a universal input voltage range of 85-264 VAC or 120-375 VDC.
Key electrical specifications include a nominal output current of 500mA, line regulation of ±0.5%, and load regulation of ±1%. The unit offers 3000 Vac isolation and features over-current, over-voltage, and short-circuit protections. It operates efficiently with an efficiency rating of 77% and has a low no-load power consumption of less than 0.5W.
Mechanically, the VOF-6-12 has dimensions of 55 x 35 x 16.5 mm and is designed for through-hole mounting. It operates within an ambient temperature range of 0°C to 60°C with derating. The power supply is certified to UL/cUL 60950 standards and meets EMI/EMC requirements including FCC Class B and EN55022 Class B.
This series is suitable for ITE (Commercial) applications and is RoHS3 compliant.
The CUI Inc. VOF-6-12 has a nominal output voltage of 12 Vdc.
The maximum output current for the VOF-6-12 is 500mA.
The CUI Inc. VOF-6-12 has a power rating of 6 W.
The VOF-6-12 accepts a universal input voltage range of 85 to 264 VAC or 120 to 375 VDC.
The efficiency of the VOF-6-12 is 77%.
The dimensions of the VOF-6-12 are 55 x 35 x 16.5 mm.
The operating temperature range for this AC-DC converter is 0°C to 60°C with derating.
