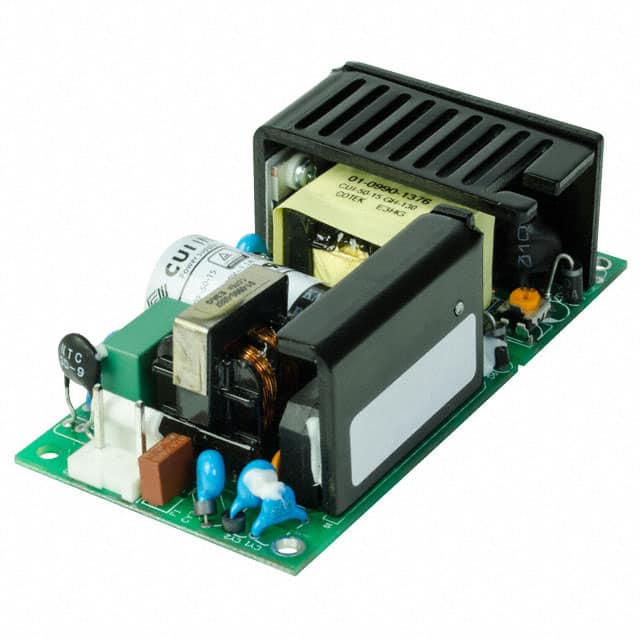

The CUI Inc. VOF-50-24 is a versatile AC-DC power supply designed for various applications. It delivers a continuous 50W of power with a single 24V DC output. The unit accepts a universal input voltage range from 90 to 277 Vac, making it suitable for global use.
Key electrical specifications include high efficiency up to 89%, line and load regulation of ±0.5% and ±1% respectively, and an adjustable output voltage with ±5% trim. Protections include over-current, over-voltage, and short-circuit with auto-recovery.
With a compact size and chassis mount type, this open-frame power supply is designed for integration into final equipment. It operates within a temperature range of -20°C to 60°C with derating and offers 3000 Vac isolation.
Compliance includes UL/cUL and TUV safety approvals, meeting standards such as UL60950-1 and EN60950-1. It also adheres to EMI/EMC standards including EN 55022 Class B and FCC Class B.
The VOF-50-24 has a nominal output voltage of 24 Vdc.
The maximum output current for the VOF-50-24 is 2.1 A.
The VOF-50-24 provides a maximum output power of 50W.
The VOF-50-24 accepts a universal input voltage range of 90-277 Vac.
The VOF-50-24 has a typical efficiency of 89%.
The operating temperature range for the VOF-50-24 is -20°C to 60°C, with derating.
The VOF-50-24 has safety approvals from CB Scheme, EN, FCC, IEC, SIQ, TUV, and UL.
