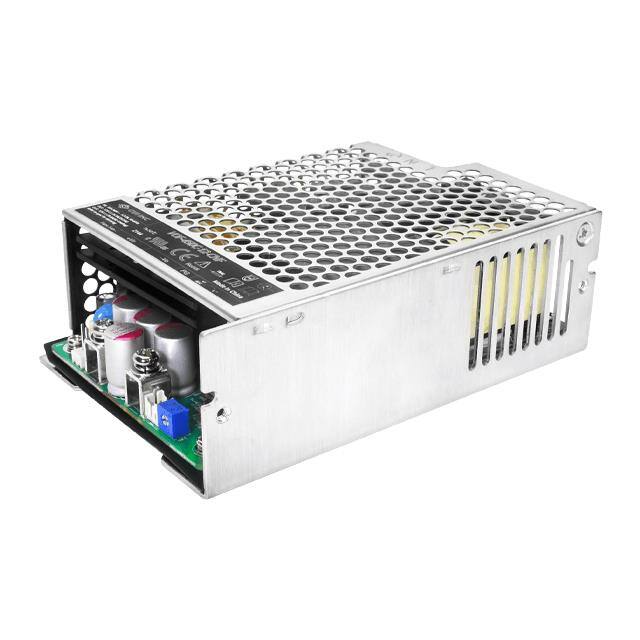

The CUI Inc. VOF-450C-15-CNF is a versatile AC to DC power supply designed for various applications. This enclosed unit delivers a 15VDC output with a maximum power rating of 401W, featuring an efficiency of 92% under convection cooling and up to 450W with forced air.
Key electrical specifications include a wide input voltage range of 90-264VAC or 127-370VDC and an input frequency of 47-63Hz. It provides a regulated output with an isolation voltage of 4kVAC. The power supply is designed for chassis mounting and operates reliably within a temperature range of -40°C to +70°C.
This model is suitable for ITE, Industrial, and Household applications, adhering to safety standards such as 60335-1 and 62368-1. Its dimensions are 130mm x 86mm x 43mm, making it a compact solution for power conversion needs.
90 to 264 VAC (also accepts 127 to 370 VDC).
15V at 26.7A, 401W (250W convection, 450W forced air).
92%.
4 kVAC.
Enclosed chassis mount package measuring 130 x 86 x 43 mm.
-40°C to +70°C.
60335-1 and 62368-1.
