| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

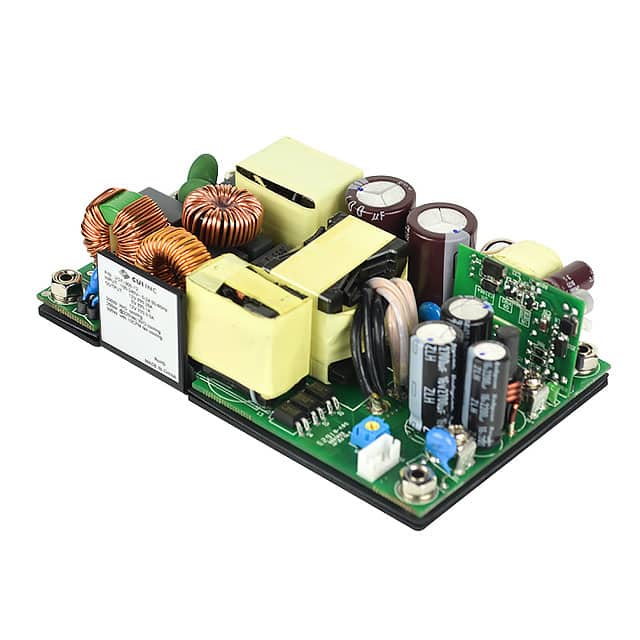

The CUI Inc. VOF-300-36 is an AC-DC power supply designed for various applications, providing a stable 36V output voltage and a maximum output current of 8.34A. It delivers up to 300W of continuous power with forced air cooling, or 200W with convection cooling.
This power supply features a universal input voltage range of 90-264 Vac and includes power factor correction (PFC) that meets EN 61000-3-2 standards. Key features include remote voltage sense, remote on/off control, and a standby 5Vdc auxiliary output. It also offers over voltage, over current, over temperature, and short circuit protections.
The VOF-300-36 is built with an industry-standard 3" x 5" footprint and is suitable for chassis mounting. It operates within a wide temperature range of -40°C to 80°C with derating and boasts an efficiency of up to 94%.
Safety approvals include CB Scheme, EN, IEC, SIQ, TUV, and UL, adhering to standards like 60950-1. This makes it a reliable choice for ITE (Commercial) applications requiring robust power conversion.
The output voltage is 36 Vdc.
The maximum output current is 8.34 A.
The maximum output power is 300 W with forced air cooling and 200 W with convection cooling.
The input voltage range is 90-264 Vac.
The efficiency is up to 94%, with a typical efficiency of 93.5% at full load, 25°C, and 230 Vac input.
The operating temperature range is -40°C to 80°C, with derating applied.
It has safety approvals from CB Scheme, EN, IEC, SIQ, TUV, and UL.
