| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

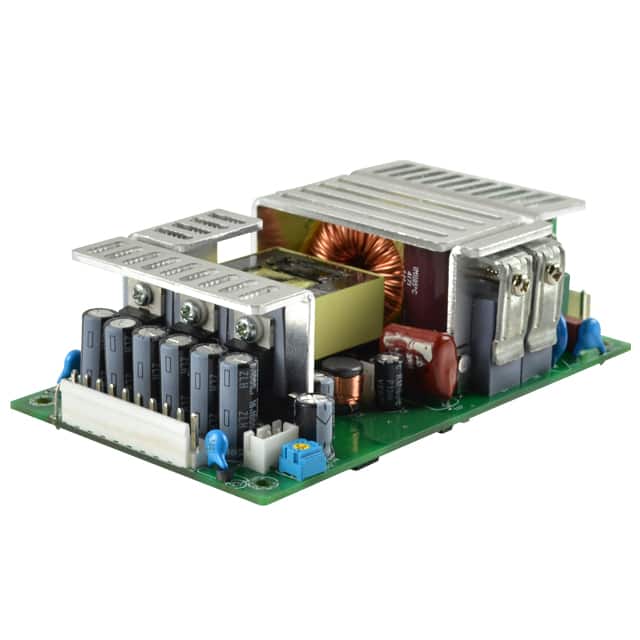

The CUI Inc. VOF-280-36 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 168W, with a maximum of 280W under forced air conditions, and features a 36V output.
Key electrical specifications include a current rating of 4.67A and an efficiency of 90%. The converter operates within a temperature range of -20°C to 70°C with derating. It supports universal input and includes features such as adjustable output, Power Factor Correction (PFC), and a standby output.
This AC/DC converter has dimensions of 127.0mm x 76.2mm x 35.0mm and is designed for chassis mounting. It meets various safety and performance standards, including CB Scheme, CSA, EN, FCC, IEC, SIQ, TUV, and UL, and complies with standard numbers like C22.2 No. 60950-1 and 61000-3-2.
The VOF-280-36 is RoHS3 compliant and has an MSL rating of 1, indicating unlimited moisture sensitivity. It is suitable for applications requiring reliable power conversion in commercial IT equipment.
36V DC.
168W continuous (280W with forced air cooling).
-20°C to 70°C with derating.
90% typical.
CB Scheme, CSA, EN, FCC, IEC, SIQ, TUV, UL.
3kV.
Yes, it features a standby output.
