| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

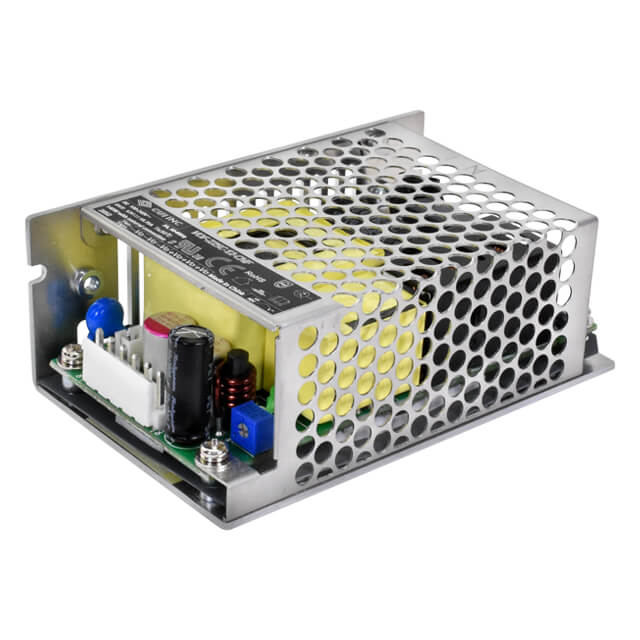

The CUI Inc. VOF-225C-48-CNF is an enclosed AC/DC converter designed for various applications, including household appliances and ITE (Commercial) equipment. It provides a single 48V output with a current rating of 4.7A, delivering a total power of 226W.
This converter operates with a universal input voltage range of 85-264 VAC or 120-370 VDC and boasts a high efficiency of 94%. Key features include adjustable output, standby output, and an isolation voltage of 4 kV. The operating temperature range is -40°C to 70°C with derating.
Designed for easy integration, the VOF-225C-48-CNF features a chassis mount type. Its dimensions are 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm). The unit complies with standards such as 60335-1 and 62368-1, and is RoHS3 Compliant.
The output voltage is 48V and the output current is 4.7A.
The input voltage range is 85 to 264 VAC or 120 to 370 VDC.
The operating temperature range is -40°C to 70°C with derating.
The typical efficiency is 94%.
The isolation voltage is 4kV.
The dimensions are 103.4mm (length) x 62.0mm (width) x 37.0mm (height).
It uses chassis mount mounting type.
