| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

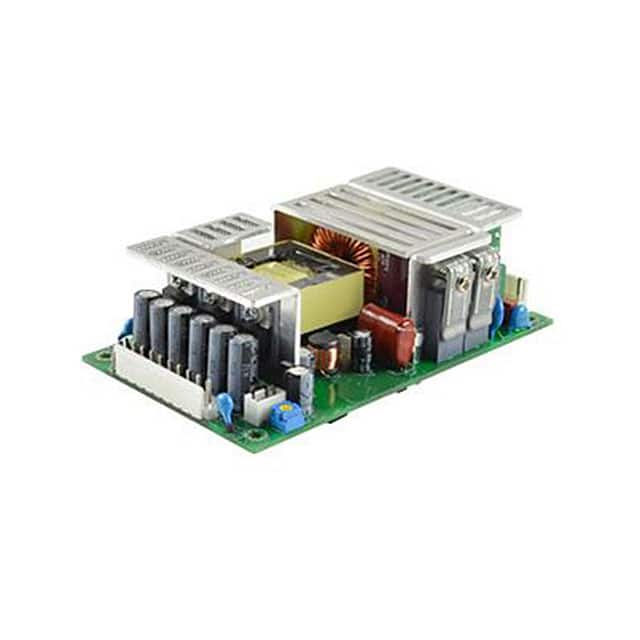

The CUI Inc. VOF-225-15 is an AC-DC power supply in an open-frame, chassis mount configuration. It delivers a 15V DC output with a maximum current of 15A, providing 135W of power under convection cooling and up to 225W with forced air cooling.
This power supply features a universal input voltage range of 90-277 Vac and includes power factor correction. Key electrical specifications include line regulation of ±0.5%, load regulation of ±1%, and an efficiency of up to 90%. Protections include over voltage, over current (hiccup, auto recovery), and short circuit (latch).
Designed for ITE (Commercial) applications, the VOF-225-15 has dimensions of 5.00" L x 3.00" W x 1.38" H. It meets various safety standards including UL 60950-1 and EN 60950-1.
The output voltage is 15 Vdc.
The maximum output current is 15 A.
The output power is 135 W with convection cooling.
The output power is 225 W with forced air cooling.
The operating temperature range is -20°C to 70°C (With Derating).
The dimensions are 127.0mm (Length) x 76.2mm (Width) x 35.0mm (Height).
It has approvals from CB Scheme, CSA, EN, FCC, IEC, SIQ, TUV, and UL.
