| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

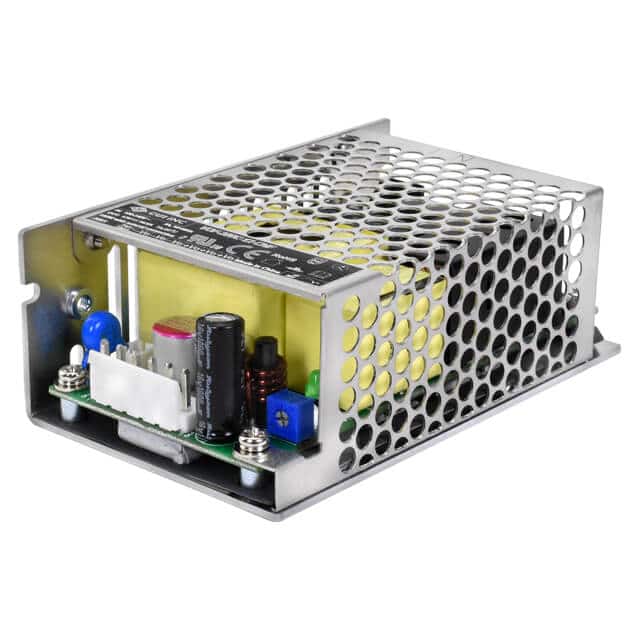

The CUI Inc. VOF-200C-48-CNF is a 200W AC-DC power supply designed for versatility and reliability. It offers a nominal output voltage of 48Vdc with a maximum current of 4.16A, delivering a total output power of 200W. The unit operates with a universal input voltage range of 85-264 Vac and features active power factor correction, achieving a typical efficiency of 94% at 230 Vac.
Key electrical specifications include a wide input frequency range of 47-63 Hz, low leakage current (<0.1 mA), and low standby power consumption (0.5 W). Protections include over-voltage, over-current, over-temperature, and short-circuit protection, ensuring safe operation. The power supply is certified to IEC/EN/UL 62368-1, IEC/EN 60335-1, and IEC/EN 61558-1 safety standards.
Designed for chassis mounting, this enclosed power supply has dimensions of 103.4mm x 62.0mm x 37.0mm. It is suitable for safety class I or class II installations and is intended for applications in household appliances and ITE (Commercial) equipment. The operating temperature range is -40°C to 70°C with derating.
The nominal output voltage is 48Vdc.
The maximum output current is 4.16A.
The maximum output power is 200W.
The universal input voltage range is 85-264 Vac.
The typical efficiency is 94% at 230 Vac.
The operating temperature range is -40°C to 70°C with derating.
