| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

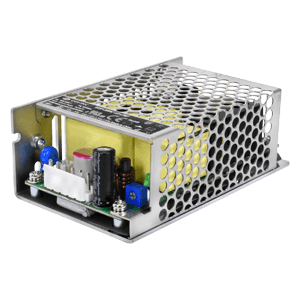

The CUI Inc. VOF-200C-48 is a 200W AC/DC converter designed for reliable power conversion in industrial and commercial applications. It delivers a single regulated 48VDC output at 4.16A with a high efficiency of 94%, reducing power loss and thermal management requirements.
This converter accepts a universal input voltage range of 85-264 VAC, making it suitable for global use. It provides 4kV isolation voltage for enhanced safety and noise immunity. The operating temperature range is -40°C to 70°C with derating, allowing operation in harsh environments.
The VOF-200C-48 comes in an open-frame chassis-mount package measuring 101.6mm x 50.8mm x 25.4mm, enabling easy integration into equipment enclosures. It complies with safety standards 60335-1 and 62368-1.
The output voltage is 48 VDC and the output current is 4.16 A.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -40°C to 70°C with derating.
The efficiency is 94%.
The isolation voltage is 4 kV.
The dimensions are 101.6mm (length) x 50.8mm (width) x 25.4mm (height).
It uses chassis mount and is an open frame design.
