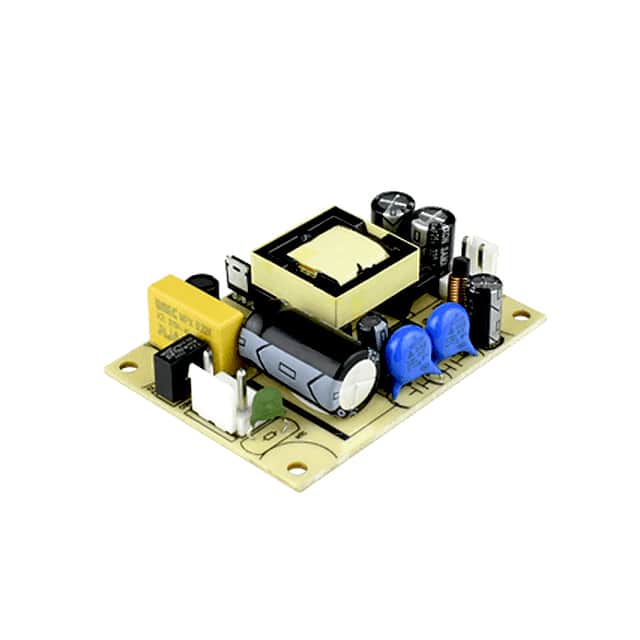

The CUI Inc. VOF-15C-S12 is an AC-DC power supply designed for various applications. It provides a 12V DC output with a maximum power of 15W and a maximum current of 1.25A. The unit operates with a universal input voltage range of 85-264 Vac and features a typical efficiency of 81% at 230 Vac input.
Key electrical specifications include a nominal output voltage accuracy of ±2%, line regulation of ±0.5%, and load regulation of ±1%. It offers protection features such as over-voltage, over-current, and short-circuit protection. The operating temperature range is -25°C to 70°C with derating.
Designed for easy integration, this AC-DC converter has a chassis mount type and an open frame package. It meets Class B EMI performance standards, complying with CISPR32/EN55032, and is safety certified to IEC/EN/UL 62368-1. Applications include ITE (Commercial) and household appliances.
85-264 Vac.
12 Vdc at 1.25 A maximum.
-25°C to 70°C with derating.
Over voltage protection (clamp at 20 Vdc), over current protection (130-300% hiccup, auto recovery), and short circuit protection (continuous, auto-recovery).
81% typical at 230 Vac input.
IEC/EN/UL 62368-1 certified, designed to meet IEC/EN/UL 60335-1.
3000 Vac between input and output.
