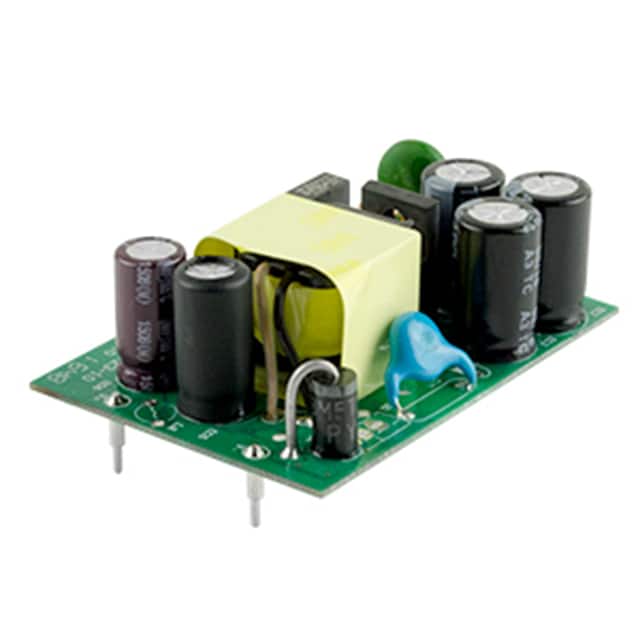

The CUI Inc. VOF-15B-S9 is an AC-DC power supply from the VOF-15B series, delivering a continuous 15W of power. It offers a single 9Vdc output with a maximum current of 1.6A. The unit accepts a universal input voltage range of 85-264 Vac and operates at a switching frequency of 65 kHz.
Designed with a compact open-frame construction, this power supply is suitable for ITE (Commercial) applications. It includes essential protections such as over-voltage, over-current, and short-circuit protection, all with hiccup and auto-recovery modes. The efficiency is typically 84.28% at full load.
Environmental specifications include an operating temperature range of -25°C to 70°C with derating and a storage temperature range of -40°C to 85°C. It also supports non-condensing humidity up to 93% and operates at altitudes up to 5000m.
The VOF-15B-S9 meets various safety and compliance standards, including IEC62368-1/60950-1 and UL62368-1/60950-1, with an isolation voltage of 4000 Vac. It is also compliant with EN 55032 Class B and FCC Part 15 Class B for EMI/EMC.
The VOF-15B-S9 provides a nominal output voltage of 9 Vdc.
The maximum output current for the VOF-15B-S9 is 1.6A.
The VOF-15B-S9 has a maximum output power of 14.4W.
The VOF-15B-S9 accepts a universal input voltage range from 85 Vac to 264 Vac.
The VOF-15B-S9 operates within a temperature range of -25°C to 70°C, with derating.
The VOF-15B-S9 complies with IEC62368-1/60950-1 and UL62368-1/60950-1 safety standards.
The VOF-15B-S9 is supplied in a 4-DIP Module package with a Through Hole mounting type.
