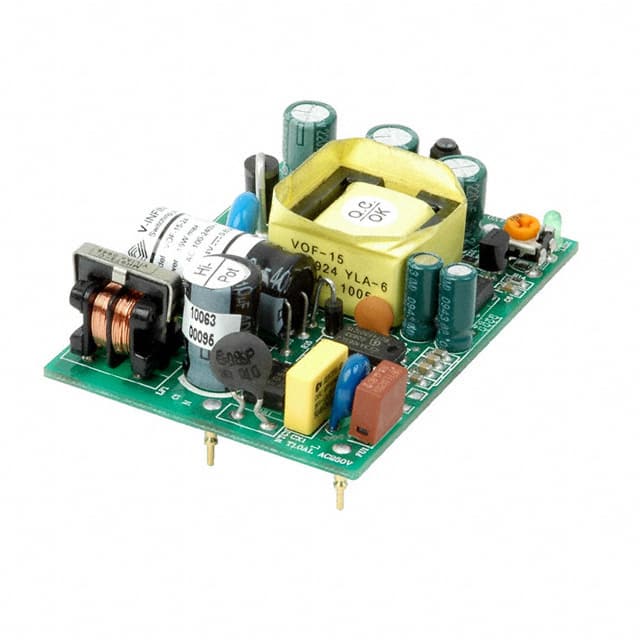

The CUI Inc. VOF-15-12 is an AC-DC power supply from the VOF-15 series, designed for reliable power conversion. It delivers a continuous 15W of power with a single 12V DC output at 1.25A.
This converter features a universal input voltage range of 85-264 VAC, making it suitable for global applications. It boasts an efficiency of up to 80% and includes essential protections such as over-current, over-voltage, and short-circuit protection. The unit is designed for Through Hole mounting and comes in a compact 4-DIP Module package.
Key electrical specifications include ±0.5% line regulation and ±1% load regulation for stable output. The operating temperature range is 0°C to 60°C with derating, and it offers 3000 Vac isolation voltage. The dimensions are 70.0mm x 48.6mm x 18mm.
This power supply is suitable for ITE (Commercial) applications and meets safety approvals including UL/cUL and TUV 60950-1 standards. It also complies with RoHS directives.
The VOF-15-12 provides a 12 VDC output.
The maximum output current is 1.25A.
The VOF-15-12 offers up to 15W of continuous power.
The input voltage range is 85 to 264 VAC.
The efficiency is up to 80%.
The dimensions are 70.0mm x 48.6mm x 18mm.
The operating temperature range is 0°C to 60°C with derating.
