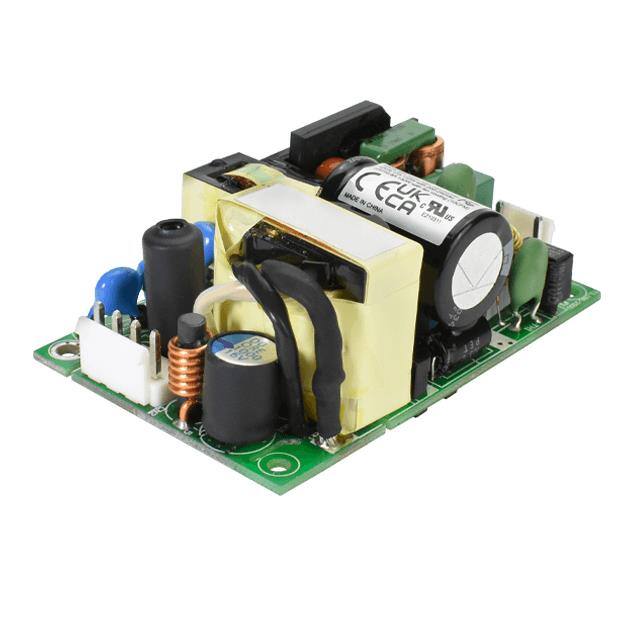

The CUI Inc. VOF-130-12 is an AC-DC power supply designed for ITE (Commercial) applications. It operates within a wide input voltage range of 80-264 Vac and provides a stable 12V output at up to 10.8A, delivering a maximum power of 130W with forced air cooling.
This power supply boasts high efficiency, typically 93% at 230 Vac and 75% load. Key electrical specifications include line regulation of ±0.5% and load regulation of ±1%. It features active Power Factor Correction (PFC) and comprehensive protections such as over-voltage, over-current, and short-circuit protection with auto-recovery.
The VOF-130-12 has an open frame chassis and is designed for chassis mounting. Its dimensions are 76.2mm x 50.8mm x 30.5mm. The unit meets stringent safety and compliance standards, including IEC 62368-1, and is approved by CE, cURus, and UKCA. It also adheres to various EMC standards for conducted and radiated emissions, immunity, and surge protection.
The VOF-130-12 has a nominal output voltage of 12 Vdc.
The maximum output power is 130W with forced air cooling.
The input voltage range is 80-264 Vac.
The typical efficiency is 93% at 230 Vac, 25°C, and 75% load.
The dimensions are 76.2mm x 50.8mm x 30.5mm.
The operating temperature range is -30°C to 70°C, with derating.
Yes, the 12 Vdc output model has over-voltage protection with a minimum threshold of 13.5 Vdc.
