| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

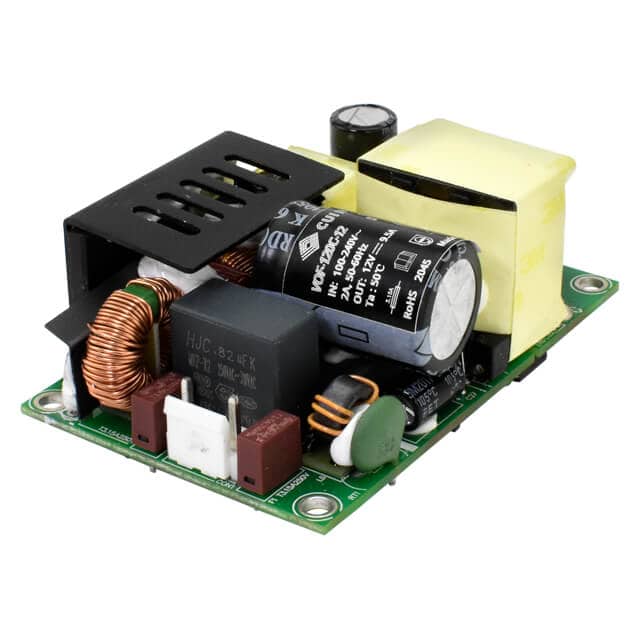

The CUI Inc. VOF-120C-36 is an open-frame AC-DC power supply designed for various applications. It provides a nominal output voltage of 36V and a maximum output current of 3.33A, delivering up to 120W of power. The unit features a universal input voltage range of 85-264 Vac and boasts a high typical efficiency of 94% at 230 Vac.
Key electrical specifications include a wide operating temperature range from -40°C to +85°C, active power factor correction, and protections such as over voltage, over current, over temperature, and short circuit. The output voltage is adjustable via a built-in trimpot within ±5% of the nominal value. Ripple and noise are kept to a maximum of 200 mVp-p at full load.
This AC-DC converter is suitable for safety class I or II installations and is certified to 62368, 60335, and 61558 safety standards. Its open-frame design and chassis mount type make it ideal for integration into systems requiring efficient power conversion for applications like household appliances and ITE commercial equipment.
The nominal output voltage is 36 Vdc.
The maximum output current is 3.33 A.
The maximum output power is 120W.
The AC input voltage range is 85 to 264 Vac.
The operating temperature range is -40°C to +85°C.
It is certified to 62368, 60335, and 61558 safety standards.
It uses chassis mount.
