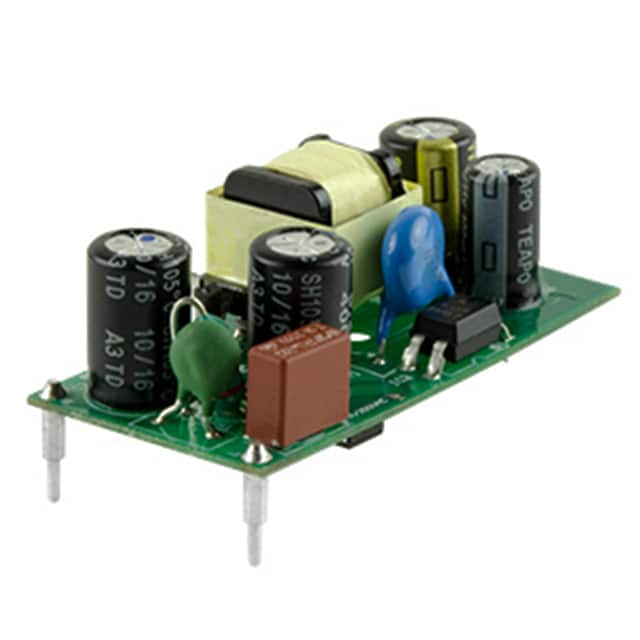

The CUI Inc. VOF-10B-S15 is an AC-DC power supply designed for board mount applications. It delivers up to 10.5W of continuous power with a nominal output voltage of 15Vdc and a maximum output current of 0.7A.
This power supply features a universal input voltage range of 85-264 Vac and operates with an efficiency of up to 82.49%. It includes essential protections such as short circuit, over voltage, and over current protection. The compact open-frame design and through-hole mounting make it suitable for various ITE (Commercial) applications.
Key electrical specifications include a line regulation of ±0.5% and a load regulation of ±3%. The operating temperature range is -25°C to 70°C with derating. Safety approvals include CB Scheme, EN, FCC, IEC, and UL standards, ensuring reliable performance in demanding environments.
85-264 VAC (47-63 Hz) or 370 VDC maximum.
15 Vdc nominal at up to 0.7 A.
82.49% typical.
-25°C to 70°C (or -40°C to 80°C with derating).
4-DIP Module, through-hole mounting.
Over voltage, over current, and short circuit protection with hiccup auto recovery.
4000 Vac between input and output.
