| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

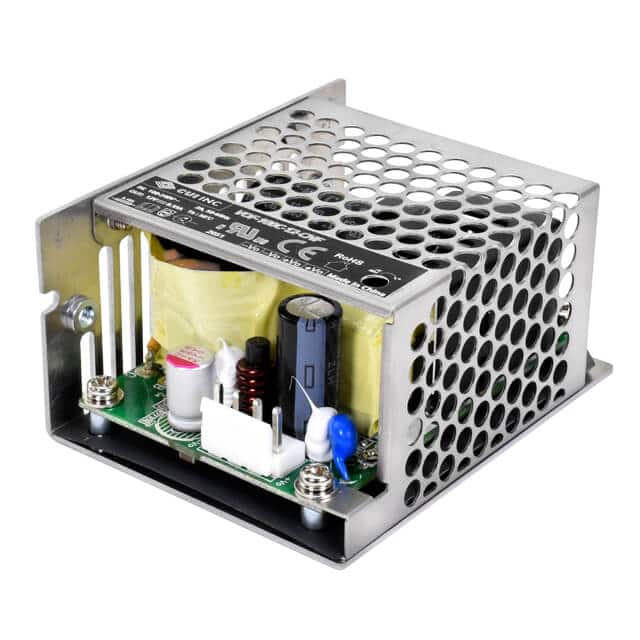

The CUI Inc. VOF-100C-24-CNF is an enclosed AC-DC power supply designed for various applications. It provides a nominal output voltage of 24V and a maximum output current of 4.16A, delivering up to 100W of power.
This power supply accepts a universal input voltage range of 85 to 264 Vac and operates efficiently with active power factor correction. It is certified to safety standards 62368-1 and 60335-1, suitable for ITE and household appliance applications.
The VOF-100C-24-CNF operates across a wide temperature range from -40°C to +85°C with derating. It includes protections for over-voltage, over-current, over-temperature, and short-circuit conditions. The unit is chassis mountable and features adjustable output via a trim potentiometer, low leakage current, and low standby power consumption.
The nominal output voltage is 24 Vdc with a maximum output current of 4.16 A, providing 100W of output power.
The AC input voltage range is 85 to 264 Vac, and the DC input voltage range is 120 to 370 Vdc.
The operating temperature range is -40°C to 85°C with derating.
The typical efficiency is 95% at 230 Vac.
The dimensions are 80.0mm (length) x 62.0mm (width) x 40.0mm (height).
Yes, it has over voltage protection set at 32 Vdc for the 24V output model, which causes output shutdown and is latching.
Yes, the output voltage is adjustable by ±5% via a built-in trimpot.
