Mfr Part #:

VOF-100C-12

Mfr Name: CUI Inc.

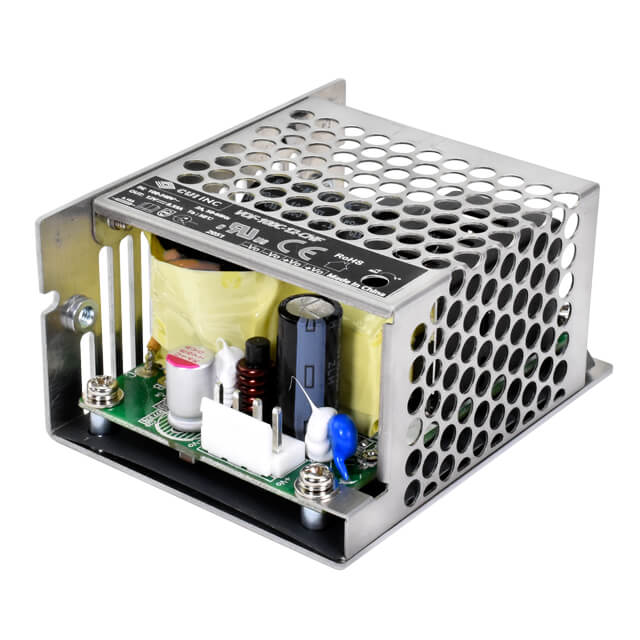

The VOF-100C-12 from CUI Inc. is a 100W AC/DC converter with a single 12V output at 8.33A. It features universal input, high efficiency, and chassis-mount packaging.

Stock on Request

VOF-100C-12 Description

Short technical summary and product information.

The CUI Inc. VOF-100C-12 is an AC/DC converter that provides a regulated 12V output at 8.33A for a total power of 100W. It accepts a universal input range of 85 to 264 VAC or 120 to 370 VDC, making it suitable for global applications. With a high efficiency of 94%, thermal management is simplified, and the 4kV isolation voltage enhances safety. The operating temperature range spans -40°C to 85°C with derating. Features include an adjustable output and a standby output. The converter is housed in a chassis-mount package supplied in a box. It is designed for household appliances and ITE (commercial) equipment, compliant with standards 60335-1 and 62368-1.

VOF-100C-12 Quick Information

Product Type: AC DC Converter

Canonical Name: CUI Inc. VOF-100C-12 AC/DC Converter

Subcategory: AC/DC Converter

VOF-100C-12 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

VOF-100C-12 Features

Universal AC/DC input range 85-264 VAC.
Single 12V output at 8.33A (100W).
High efficiency of 94% for reduced losses.
4kV isolation voltage for safety.
Wide temperature range -40°C to 85°C.

VOF-100C-12 Applications

Enclosed AC-DC converter for household appliances
Suitable for commercial IT equipment
Powers industrial control panels at 12V/100W
Chassis mount installation for fixed equipment
Operates in -40°C to 85°C environments

VOF-100C-12 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the VOF-100C-12?

85 to 264 VAC or 120 to 370 VDC.

What are the output specifications of the VOF-100C-12?

12V at 8.33A, 100W.

What is the efficiency of the VOF-100C-12?

94%.

What is the isolation voltage of the VOF-100C-12?

4 kV.

What is the operating temperature range of the VOF-100C-12?

-40°C to 85°C (with derating).

What is the package type of the VOF-100C-12?

Chassis mount with box packaging.

Does the VOF-100C-12 have an adjustable output?

Yes, it includes an adjustable output feature.

Category	AC DC Converters
Manufacturer Name	CUI Inc.
Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus
Current	8.33 A
Duration	3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm)
Efficiency	94%
Features	Adjustable Output, Standby Output, Universal Input
Height	35.1mm (1.38")
Industrial Grade	Yes
Length	76.2mm (3.00")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-40°C ~ 85°C (With Derating)
Output Voltage	12V
Power (Watts)	100W
SVHC Present	Not Present
Standard Number	60335-1; 62368-1
Tape & Reel	No
Type	Open Frame
Voltage	4 kV
Width	50.8mm (2.00")
