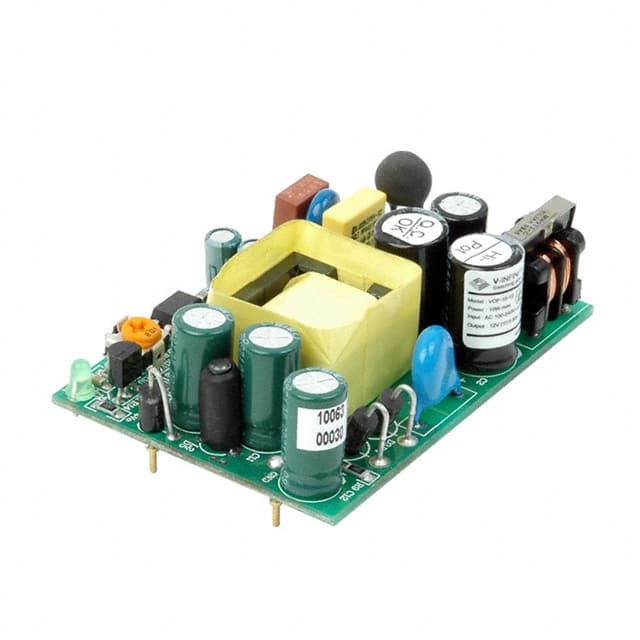

The CUI Inc. VOF-10-5 is an AC-DC power supply from the VOF-10 series, designed for reliable power conversion in various applications. It delivers a continuous 10W of power with a single 5V DC output, capable of supplying up to 2A.
This converter features a universal input voltage range of 85-264 VAC, making it suitable for global use. It boasts an efficiency of up to 75% and includes essential protections such as over-current, over-voltage, and short-circuit protection. The compact size and open frame construction facilitate easy integration into systems.
With a 3000 Vac isolation voltage and compliance with UL/cUL and TUV 60950-1 safety standards, the VOF-10-5 ensures safety and reliability. It operates within a temperature range of 0°C to 60°C (with derating) and is designed for through-hole mounting.
Key specifications include a line regulation of ±0.5% and load regulation of ±1%. The switching frequency is 100 kHz, and it requires no minimum load. The dimensions are 65 x 45 x 23.1 mm.
The output voltage is 5 VDC.
The maximum output current is 2 A.
The power rating is 10 W.
The input voltage range is 85 ~ 264 VAC.
The efficiency is typically 75%.
The dimensions are 65 x 45 x 23.1 mm.
The operating temperature range is 0°C to 60°C.
