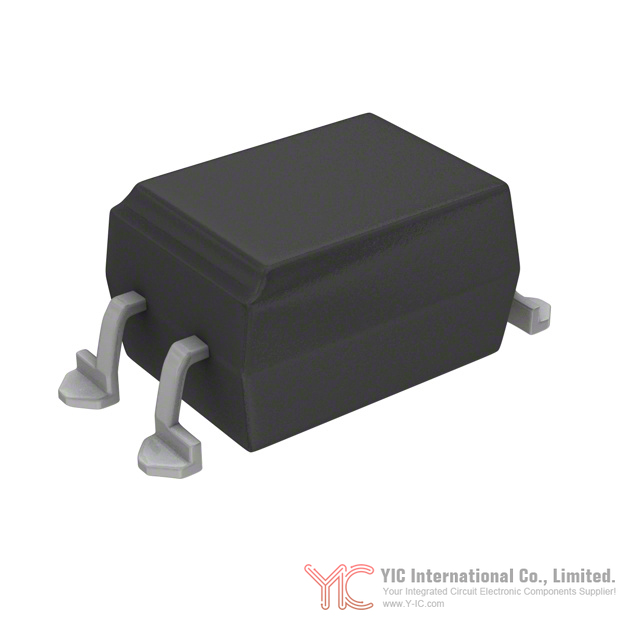

VO618A-3X017T The Vishay Dale VO618A-3X017T is a phototransistor output optocoupler featuring 5300Vrms isolation and a wide operating temperature range. It is designed for surface mount applications.
Mfr Part #:

VO618A-3X017T

Available from 4 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale VO618A-3X017T is a phototransistor output optocoupler featuring 5300Vrms isolation and a wide operating temperature range. It is designed for surface mount applications.
✓ Total Stock: 61,894 pcs
$ Price Range: $0.39

VO618A-3X017T Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
60,267 pcs
On Request
60267 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
587 pcs
On Request
587 pcs On Request 1 On Request On Request 1234+ On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VO618A-3X017T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Input Type
Mounting Type
Number of Channels
Operating Temperature
Output Type
Rise
Supplier Device Package
Supplier Package
Turn Off Time
Turn On
Vce Saturation (Max)
Voltage
View Similar Products (0)

VO618A-3X017T Description

Short technical summary and product information.

The Vishay Dale VO618A-3X017T is an optocoupler with a phototransistor output, designed for reliable signal transmission between electrically separated circuits. It offers a high isolation test voltage of 5300 VRMS and a collector-emitter voltage of 80V. The device operates across a wide temperature range from -55°C to +110°C.



This optocoupler features a forward current rating of 60 mA and a minimum current transfer ratio of 100% at 1mA, with a maximum of 200% at 1mA. The Vce saturation voltage is a maximum of 400mV. Switching characteristics include a typical turn-on time of 3µs and a turn-off time of 2.3µs, with rise and fall times of 2µs.



The VO618A-3X017T is housed in a 4-SMD, Gull Wing package, suitable for surface mounting. Its design is end-stackable with 2.54 mm spacing, and it provides high common mode interference immunity. Applications include AC adapters, SMPS, PLCs, factory automation, and game consoles.



Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status, though these are noted as unverified.

VO618A-3X017T Quick Information

Product Type: Optocoupler
Canonical Name: Vishay Dale VO618A Optocoupler, Phototransistor Output, 5300 VRMS Isolation
Subcategory: Phototransistor Output

VO618A-3X017T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VO618A-3X017T Estimated Pricing

Qty Low High
1+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

VO618A-3X017T Features

  • High isolation voltage of 5300 VRMS.
  • Wide operating temperature range -55°C to 110°C.
  • Surface mount 4-SMD Gull Wing package.
  • Fast switching times, 3µs turn-on, 2.3µs turn-off.
  • Phototransistor output for signal isolation.

VO618A-3X017T Applications

  • Suitable for AC adapters and SMPS.
  • Used in PLC and factory automation.
  • Applicable for game consoles.
  • Provides signal transmission between circuits.

VO618A-3X017T FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the VO618A-3X017T optocoupler?

The isolation test voltage is 5300 VRMS.

What is the operating temperature range for the VO618A-3X017T?

The operating temperature range is from -55°C to 110°C.

What is the package type for the VO618A-3X017T?

The package type is 4-SMD, Gull Wing, and it is a surface mount device.

What is the minimum current transfer ratio (CTR) for the VO618A-3X017T?

The minimum current transfer ratio is 100% at a forward current of 1mA.

What is the maximum collector-emitter voltage (VCEO) for this optocoupler?

The maximum collector-emitter voltage is 80V.
