| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
279 pcs
|
279 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Forward Current | |
| Forward Voltage | |
| Hold Current | |
| Input Power Dissipation | |
| Isolation Voltage | |
| Mounting Type | |
| Non-repetitive Surge Peak On-State Current | |
| Number of Channels | |
| Off-State Voltage | |
| On-State Current | |
| Operating Temperature | |
| Output Power Dissipation | |
| Output Type | |
| Peak Off-State Voltage | |
| RMS On-State Current | |
| Repetitive Peak Off-State Voltage | |
| Soldering Temperature | |
| Static dV | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Total Power Dissipation | |
| Trigger Current | |
| Voltage | |
| Zero Crossing Circuit | |
| dv/dt |

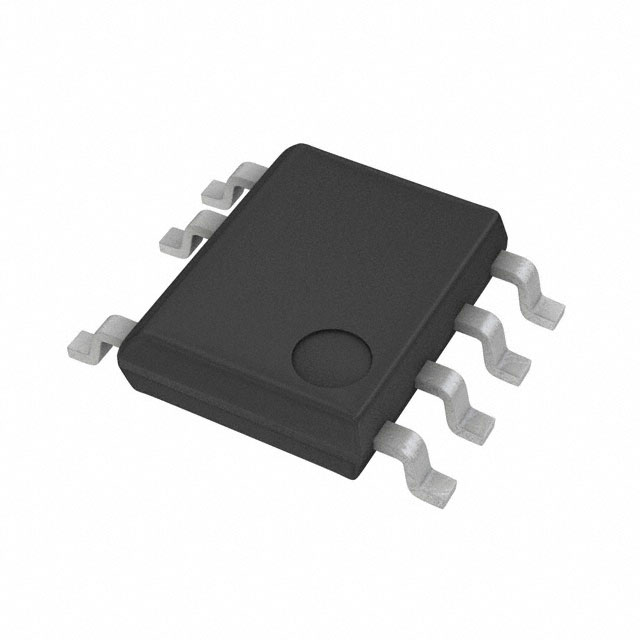

The Vishay Dale VO2223A-X007T is an optically coupled phototriac designed for driving medium AC loads. It features an integrated power TRIAC and provides galvanic and electrical noise isolation.
Key electrical specifications include a peak off-state voltage of 600V and an RMS on-state current of 1A. The device offers an isolation voltage of 5300Vrms and a typical dV/dt rating of 210 V/µs. The typical forward voltage is 1.4V at a maximum forward current of 50mA.
This optocoupler is housed in an 8-SMD package with gull wing leads, suitable for surface mounting. It operates within an ambient temperature range of -40°C to 85°C. The VO2223A-X007T is suitable for applications such as air conditioners, microwave ovens, washing machines, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.60 | $7.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak off-state voltage is 600 V.
The RMS on-state current is 1 A.
The isolation voltage is 5300 Vrms.
The operating temperature range is -40°C to 85°C.
The VO2223A-X007T is in an 8-SMD package with 7 leads and gull wing termination.
