VNQ500PEPTR-E The STMicroelectronics VNQ500PEPTR-E is a power distribution switch featuring 4 N-Channel outputs. It operates within a temperature range of -40°C to 150°C and is available in a PowerSSO-12 package.
Mfr Part #:

VNQ500PEPTR-E

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics VNQ500PEPTR-E is a power distribution switch featuring 4 N-Channel outputs. It operates within a temperature range of -40°C to 150°C and is available in a PowerSSO-12 package.
✓ Total Stock: 760,000 pcs
$ Price Range: $0.32

VNQ500PEPTR-E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
760,000 pcs
On Request
760000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VNQ500PEPTR-E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

VNQ500PEPTR-E Description

Short technical summary and product information.

The STMicroelectronics VNQ500PEPTR-E is a high-side power distribution switch designed for general-purpose applications. It features 4 N-Channel outputs, each capable of handling 400mA. The device offers integrated fault protection, including current limiting, over-temperature protection, and undervoltage lockout (UVLO).



This switch operates with an On/Off interface and a 1:1 ratio. Its Rds On is specified at a maximum of 500mOhm. The operating temperature range is -40°C to 150°C (TJ).

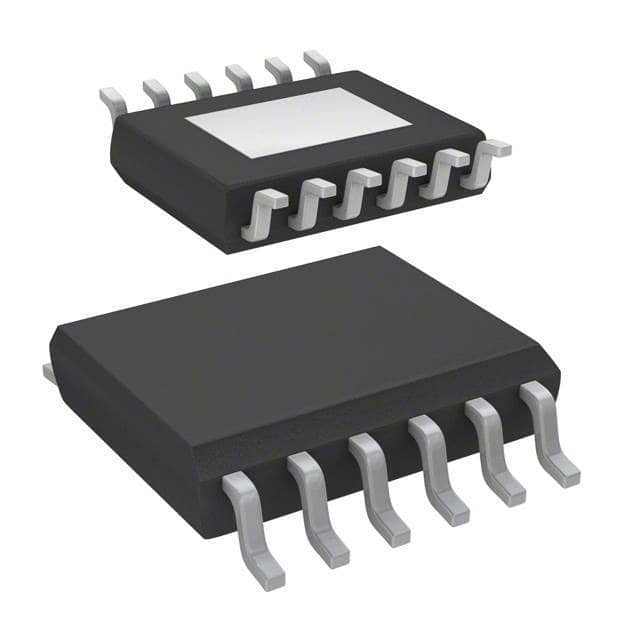

The VNQ500PEPTR-E is supplied in a PowerSSO-12 package, designed for surface mounting. The package dimensions are 12-PowerLSOP with a width of 0.154 inches (3.90mm). It is classified under the Power Distribution Switches, Load Drivers category.



This component is RoHS3 compliant and has an MSL rating of 1.

VNQ500PEPTR-E Quick Information

Product Type: Power Distribution Switch
Canonical Name: STMicroelectronics VNQ500PEPTR-E Power Distribution Switch
Subcategory: Load Drivers

VNQ500PEPTR-E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VNQ500PEPTR-E Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

VNQ500PEPTR-E Features

  • Four N-Channel high-side outputs.
  • 400mA current rating per channel.
  • Integrated fault protection features.
  • Surface mount PowerSSO-12 package.
  • RoHS3 compliant.

VNQ500PEPTR-E Applications

  • Ideal for general-purpose load switching.
  • Suitable for automotive applications.
  • Used in power management systems.
  • Effective for controlling multiple loads.

VNQ500PEPTR-E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the VNQ500PEPTR-E?

-40°C to 150°C (TJ)

What is the Rds On value for the VNQ500PEPTR-E?

500mOhm (Max)

How many outputs does the VNQ500PEPTR-E have?

4

What type of outputs does the VNQ500PEPTR-E feature?

N-Channel

What fault protection is included in the VNQ500PEPTR-E?

Current Limiting (Fixed), Over Temperature, UVLO

What is the package type for the VNQ500PEPTR-E?

PowerSSO-12

Is the VNQ500PEPTR-E RoHS compliant?

RoHS3 Compliant
