| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
710,000 pcs
|
710000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Supply Voltage | |
| Switch Type | |
| Voltage |
The VNI4140KTR-32 from STMicroelectronics is a versatile power distribution switch designed for general-purpose applications. It features four N-channel high-side outputs, each capable of handling up to 1A of current. The device operates with a wide load voltage range from 10.5V to 36V, making it suitable for various power management tasks.
Key electrical characteristics include a typical on-resistance of 80mOhm and non-inverting logic for its on/off interface. The VNI4140KTR-32 incorporates essential fault protection mechanisms, including fixed current limiting and over-temperature protection, along with a status flag for monitoring.
This component is housed in a PowerSSO-24 exposed bottom pad package, designed for surface mounting. Its operating temperature range is -40°C to 125°C (TJ), ensuring reliable performance in demanding environments. The VIPower™ series designation highlights its integrated power switch capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The load voltage range is 10.5V to 36V.

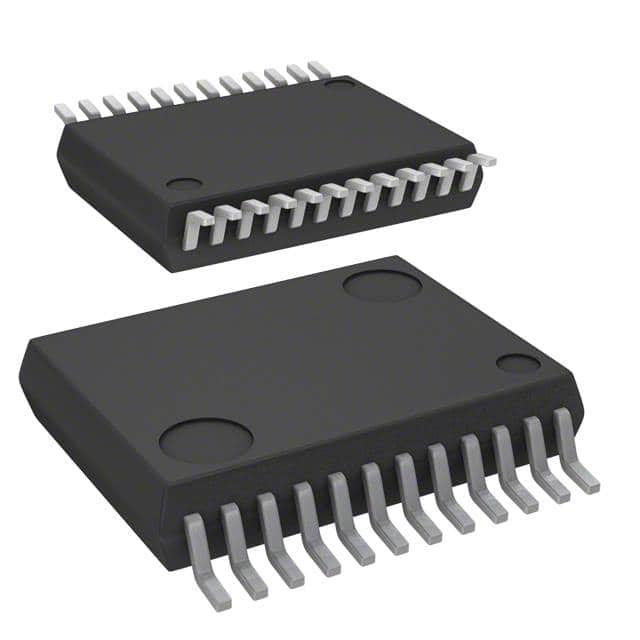

The VNI4140KTR-32 is available in a PowerSSO-24 package with exposed bottom pad, also described as 24-BSOP (0.295", 7.50mm Width) Exposed Pad.
The operating junction temperature range is -40°C to 125°C.
The device has four outputs.
The VNI4140KTR-32 includes fixed current limiting and over-temperature protection.
The typical on-resistance is 80mOhm maximum.
It is a high side switch.
