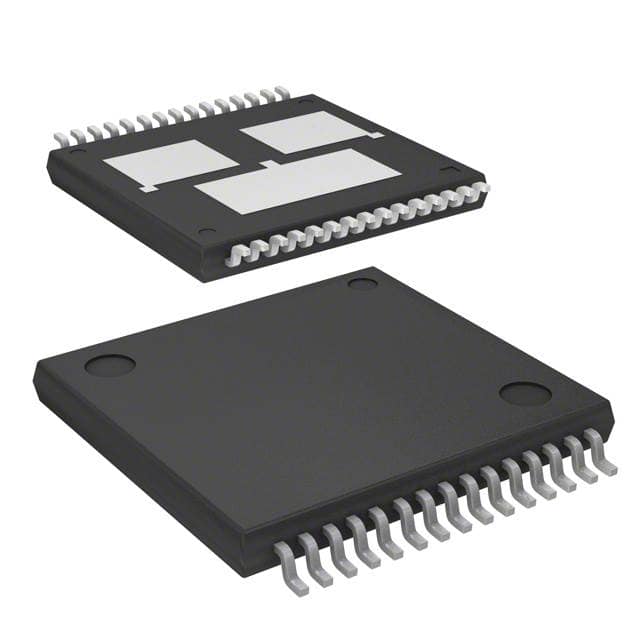

VNH5019ATR-E The STMicroelectronics VNH5019ATR-E is an integrated motor driver IC designed for automotive applications. It operates from 5.5V to 24V and can handle up to 30A.
Mfr Part #:

VNH5019ATR-E

Available from 7 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics VNH5019ATR-E is an integrated motor driver IC designed for automotive applications. It operates from 5.5V to 24V and can handle up to 30A.
✓ Total Stock: 49,304 pcs
$ Price Range: $2.25

VNH5019ATR-E Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VNH5019ATR-E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Automotive Grade
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

VNH5019ATR-E Description

Short technical summary and product information.

The STMicroelectronics VNH5019ATR-E is a fully integrated motor driver IC, combining control and power stage functionalities. Designed for automotive applications, this device operates within a voltage range of 5.5V to 24V and supports a high current rating of 30A.



Featuring a Power MOSFET technology, the VNH5019ATR-E provides a Half Bridge (2) output configuration. It supports both Parallel and PWM interfaces, making it versatile for various control schemes. The operating temperature range is from -40°C to 150°C (TJ), ensuring reliability in demanding environments.



This motor driver is packaged in a 30-PowerSOP (0.630", 16.00mm Width) with a surface mount type. It is specifically designed for brushed DC motors. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.

VNH5019ATR-E Quick Information

Product Type: Motor Driver IC
Canonical Name: STMicroelectronics VNH5019ATR-E Motor Driver IC
Subcategory: Integrated Circuit

VNH5019ATR-E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VNH5019ATR-E Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

VNH5019ATR-E Features

  • Integrated control and power stage.
  • Operates from 5.5V to 24V supply.
  • Handles up to 30A current.
  • Half Bridge (2) output configuration.
  • Suitable for automotive applications.

VNH5019ATR-E Applications

  • Ideal for automotive brushed DC motor control.
  • Used in power window and seat adjusters.
  • Suitable for industrial automation actuators.
  • Drives DC motors in robotics applications.

VNH5019ATR-E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the VNH5019ATR-E?

5.5V to 24V.

What is the maximum current rating?

30A.

What is the operating temperature range?

-40°C to 150°C (TJ).

What package is the VNH5019ATR-E available in?

30-PowerSOP (0.630", 16.00mm Width) MultiPowerSO-30.

What type of motor does this driver support?

Brushed DC motors.

What interface does it use?

Parallel and PWM.

What is the output configuration?

Half bridge (2).
