| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
173 pcs
|
173 pcs | On Request | 1 | On Request | On Request | 1420+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |
The STMicroelectronics VND7050AJTR-E is an integrated circuit belonging to the Power Distribution Switches and Load Drivers category. This device features an N-Channel output configuration and is designed for high-side switching applications.
Key electrical characteristics include a maximum current handling capability of 21A and a low Rds On (Typ) of 50mOhm. The switch type is general purpose, with an interface for On/Off control. It supports Auto Restart and provides a Status Flag output, along with comprehensive fault protection including current limiting, open load detection, over-temperature, over-voltage, and UVLO.

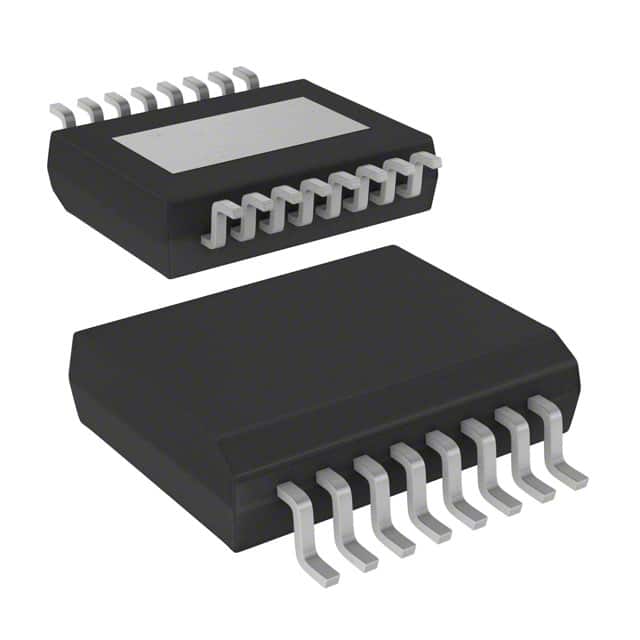

This component is housed in a PowerSSO-16 package and utilizes a Surface Mount type for installation. The operating temperature range is specified from -40°C to 150°C (TJ). The device is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
With its robust features and specifications, the VND7050AJTR-E is suitable for various power management applications requiring reliable load driving and protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 150°C (TJ)
21A
50mOhm
2
N-Channel
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
16-PowerLFSOP (0.154", 3.90mm Width)
