| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,148 pcs
|
5148 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
5,050 pcs
|
5050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage | |
| Voltage Supply |
The STMicroelectronics VND5E050JTR-E is an N-Channel power distribution switch designed for general-purpose applications. It operates with a load voltage range of 8V to 36V and can handle a maximum output current of 19A. The switch features an Rds On of 50mOhm typical and includes fault protection such as current limiting, open load detection, over-temperature, and over-voltage protection.

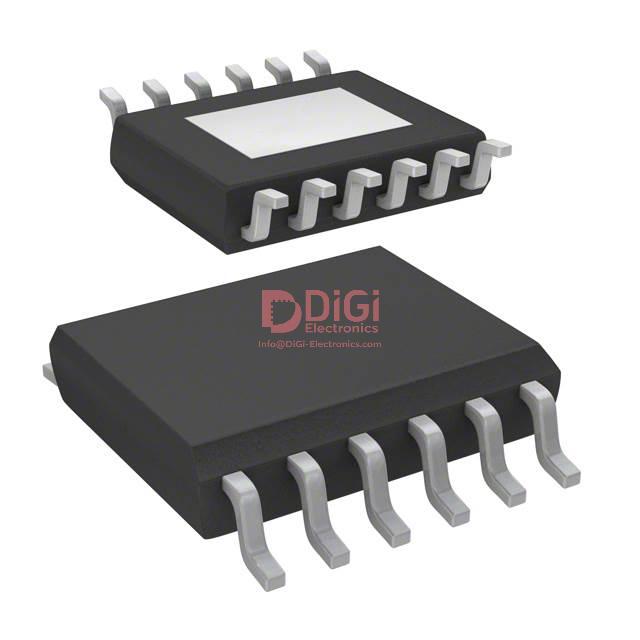

This component is housed in a 12-PowerLSOP package with a surface mount type, making it suitable for various PCB designs. The interface is controlled via an On/Off signal. The operating temperature range is from -40°C to 150°C (TJ). The VIPOWER™ series offers reliable power management solutions.
Key electrical characteristics include 2 outputs with a 1:1 input-to-output ratio and a high-side output configuration. The input type is non-inverting, and it features auto-restart functionality. This power switch is designed for applications requiring robust load driving and protection capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 19A.
The load voltage range is 8V to 36V.
It is in a 12-PowerLSOP package with a surface mount type.
It includes current limiting (fixed), open load detect, over temperature, and over voltage protection.
The typical Rds On is 50mOhm.
The operating temperature range is -40°C to 150°C (TJ).
