| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,589 pcs
|
1589 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
388 pcs
|
388 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Failure Rate | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |
The STMicroelectronics VND5050AJ-E is a high-side N-Channel power distribution switch belonging to the VIPOWER™ series. It is designed for general-purpose applications requiring robust power management.
This component offers a maximum output current of 12A and supports a wide load voltage range from 4.5V to 36V. Key electrical features include an On/Off interface and Auto Restart functionality, along with integrated fault protection such as current limiting, over temperature, and over voltage protection. The switch type is general purpose, with a 1:1 input to output ratio.

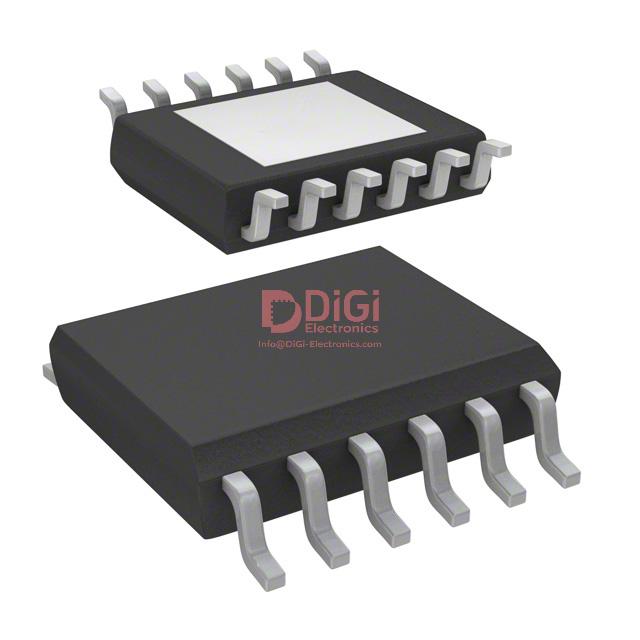

Packaged in a surface-mount PowerSSO-12™ format, the VND5050AJ-E is suitable for various electronic designs. It operates within a temperature range of -40°C to 150°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The load voltage range is 4.5V to 36V.
It is available in a PowerSSO-12 surface mount package.
-40°C to 150°C (junction).
12A per output.
Fixed current limiting, over-temperature, and over-voltage protection with auto-restart.
50mOhm (max).
No, Vcc/Vdd is not required.
