Mfr Part #:

VND5004B-E

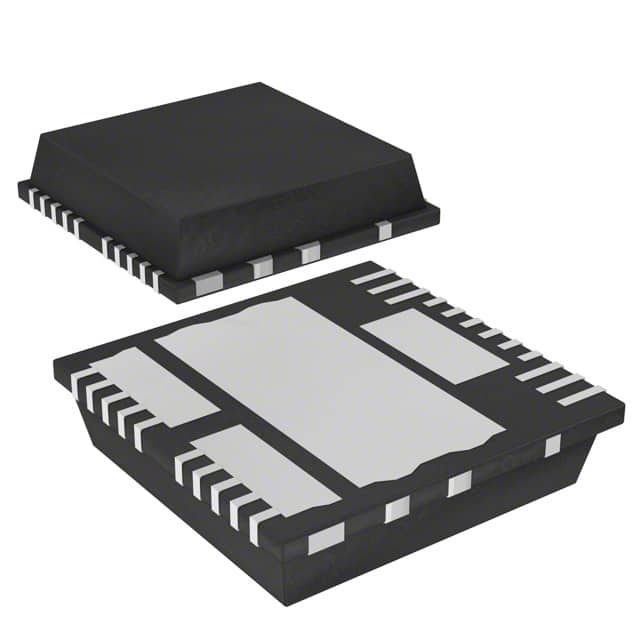

Name: VND5004B-E
Brand: STMicroelectronics
SKU: VND5004B-E

Mfr Name: STMicroelectronics

Description:

IC PWR SWITCH N-CHAN 1:1 24PQFN

Stock on Request

VND5004B-E Description

Short technical summary and product information.

IC PWR SWITCH N-CHAN 1:1 24PQFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

VND5004A-E

STMicroelectronics

IC PWR DRIVER N-CHAN 1:1 24PQFN

VND5004BTR-E

STMicroelectronics

IC PWR SWITCH N-CHAN 1:1 24PQFN

VND5004ATR-E

STMicroelectronics

IC PWR DRIVER N-CHAN 1:1 24PQFN

Category	Power Distribution Switches, Load Drivers
Manufacturer Name	STMicroelectronics
Current	70A
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage
Features	Auto Restart
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature	-40°C ~ 150°C (TJ)
Output Configuration	High Side
Output Type	N-Channel
Ratio	1:1
Rds On (Typ)	4mOhm (Max)
Supplier Device Package	24-PQFN (12x12)
Switch Type	General Purpose
Voltage	Not Required
