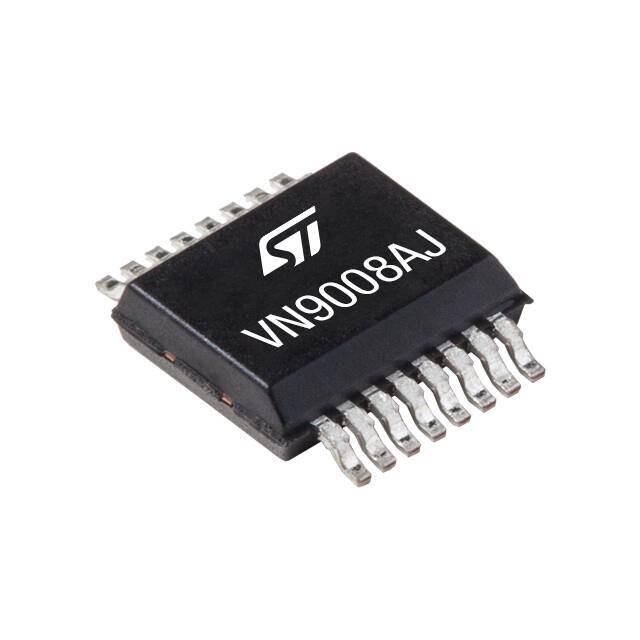

VN9008AJTR The STMicroelectronics VN9008AJTR is a single-channel high-side N-Channel power switch/driver. It operates with a supply voltage range of 4V to 28V and can handle a maximum output current of 81.6A.
Mfr Part #:

VN9008AJTR

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics VN9008AJTR is a single-channel high-side N-Channel power switch/driver. It operates with a supply voltage range of 4V to 28V and can handle a maximum output current of 81.6A.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.32

VN9008AJTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VN9008AJTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Failure Rate
Fault Protection
Features
Input Type
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
SVHC Present
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

VN9008AJTR Description

Short technical summary and product information.

The STMicroelectronics VN9008AJTR is a high-side N-Channel power switch and load driver designed for general-purpose applications. It features a single output configuration and operates within a supply voltage range of 4V to 28V, capable of delivering up to 81.6A.



Key electrical characteristics include a low on-resistance (Rds On) of 8mOhm typically. The device is designed with fault protection mechanisms such as fixed current limiting, open load detection, overload, over-temperature, over-voltage, reverse battery protection, and undervoltage lockout (UVLO). It also includes features like a latch function and a status flag.



This component is suitable for surface mounting and comes in a PowerSSO-16 package, specifically the 16-PowerLFSOP (0.154", 3.90mm Width) variant. The operating temperature range is -40°C to 150°C (TJ). The series is Automotive, AEC-Q100 compliant, indicating its suitability for automotive applications.



The VN9008AJTR is part of the Power Management Integrated Circuits (PMIC) category, specifically within Power Distribution Switches and Load Drivers.

VN9008AJTR Quick Information

Product Type: Power Distribution Switch/Load Driver
Series: Automotive, AEC-Q100
Canonical Name: VN9008AJTR Power Switch/Driver
Subcategory: Power Distribution Switches, Load Drivers

VN9008AJTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VN9008AJTR Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

VN9008AJTR Features

  • Single channel high-side N-Channel power switch.
  • High output current capability of 81.6A.
  • Low on-resistance of 8mOhm typical.
  • Wide operating voltage from 4V to 28V.
  • Comprehensive fault protection features included.

VN9008AJTR Applications

  • Suitable for automotive applications.
  • Used in power distribution systems.
  • Ideal for load driving circuits.
  • General purpose switching applications.

VN9008AJTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of VN9008AJTR?

4V to 28V.

What package type does the VN9008AJTR come in?

16-PowerLFSOP (0.154", 3.90mm Width) surface mount package.

What is the operating temperature range?

-40°C to 150°C.

What is the maximum output current?

81.6A.

What is the typical on-resistance?

8 mOhm.

What fault protection features are included?

Current limiting, open load detect, over load, over temperature, over voltage, reverse battery, and UVLO.

Is the VN9008AJTR qualified for automotive applications?

Yes, it is AEC-Q100 qualified.
