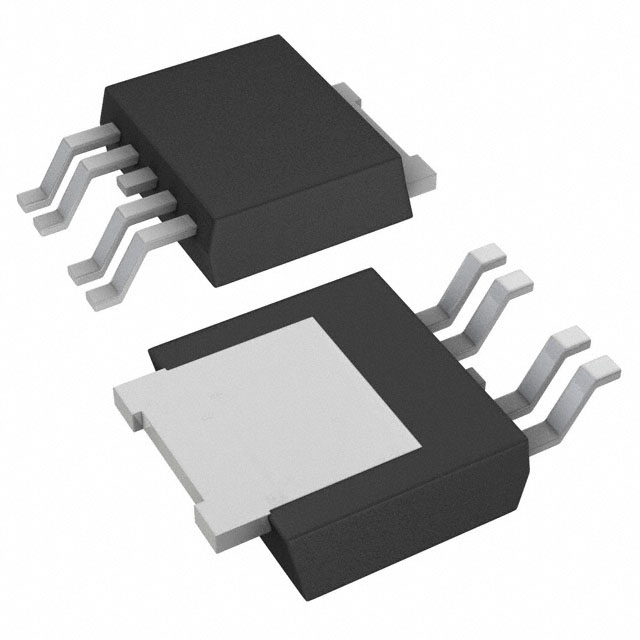

The STMicroelectronics VN820PT-E is a versatile N-channel high-side power switch IC. It is designed for robust power management solutions, capable of handling up to 9A of output current and supporting a wide supply voltage range from 5.5V to 36V, with a typical operating voltage of 13V.
Key electrical specifications include a low on-state resistance of 40m℉ and a maximum supply current of 3.5mA. The device features relatively fast switching times with a turn-on and turn-off delay of 30,000ns each. Its power dissipation capability is rated at 65.8W.
This component operates within a temperature range of -40°C to 150°C. It is housed in a TO-252-5 surface-mount package, measuring 6.6mm in length, 6.2mm in width, and 2.4mm in height. The standard package quantity is 75 units.
The VN820PT-E is RoHS3 compliant and lead-free, making it suitable for modern electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum supply voltage is 36V.
The typical operating supply voltage is 13V.
The maximum output current per channel is 9A.
The on-state resistance is 40m℉.
The operating temperature range is -40°C to 150°C.
The VN820PT-E is in a TO-252-5 package.
It is packaged in Rail/Tube.
