| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,071,600 pcs
|
1071600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
2,798 pcs
|
2798 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |
The STMicroelectronics VN808TR-E is a high-side power driver IC designed for general-purpose applications. It features 8 N-Channel outputs, each capable of handling 700mA current with a typical Rds On of 150mOhm. The device operates over a wide temperature range from -40°C to 125°C (TJ).
This power driver IC includes features such as auto-restart and status flags, along with fault protection mechanisms including current limiting and over-temperature protection. The interface is a simple On/Off control, with non-inverting input logic. The ratio is 1:1.

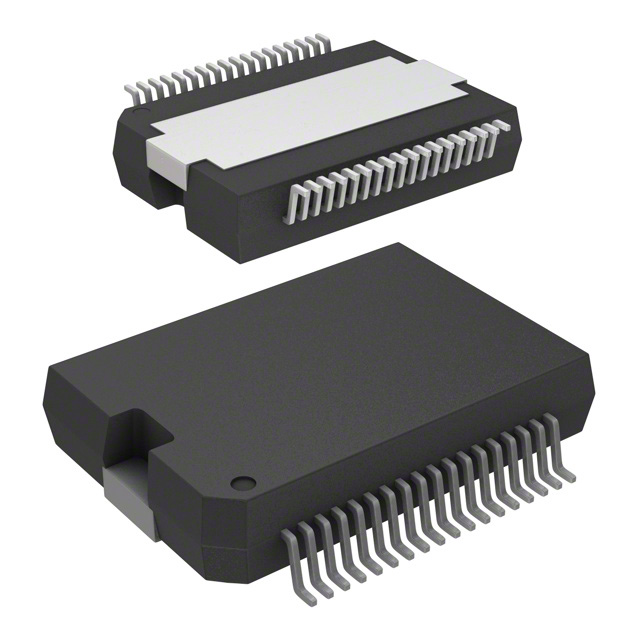

Packaged in a 36-PowerBSSOP (0.433", 11.00mm Width) with a surface mount type, the VN808TR-E is suitable for various power management applications. The supplier device package is PowerSO-36, Bottom Pad.
Environmental compliance includes RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. These compliance details are based on available data and should be verified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 125°C (TJ).
The typical Rds On is 150mOhm.
The VN808TR-E has 8 outputs.
The current rating is 700mA.
The VN808TR-E features N-Channel outputs.
The VN808TR-E is supplied in a 36-PowerBSSOP (0.433", 11.00mm Width) package.
The VN808TR-E includes current limiting (fixed) and over-temperature protection.
