Mfr Part #:

VN750PTTR-E

The STMicroelectronics VN750PTTR-E is an N-Channel power switch/driver with a 6A maximum output current. It operates with a load voltage range of 5.5V to 36V.

✓ Total Stock: 150,315 pcs

$ Price Range: $0.32

VN750PTTR-E Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	130,000 pcs On Request	130000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Risen Electronics ✓ Non-Authorised Inventory information	20,000 pcs On Request	20000 pcs	On Request	1	On Request	On Request	On Request	On Request	2026-02-16 21:33:16
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	315 pcs On Request	315 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

VN750PTTR-E Description

Short technical summary and product information.

The STMicroelectronics VN750PTTR-E is an integrated circuit designed as a general-purpose power switch and load driver. It features a 1:1 ratio with a high-side N-Channel output configuration.

Key electrical specifications include a maximum output current of 6A and an Rds On (Typ) of 60mOhm. The device supports a load voltage range from 5.5V to 36V and requires no external supply voltage (Vcc/Vdd). The interface is controlled via an On/Off signal, and it accepts non-inverting input.

This component includes several protective and diagnostic features such as Auto Restart, Status Flag, Current Limiting (Fixed), Open Load Detect, Over Temperature, and Over Voltage protection. It operates within a temperature range of -40°C to 150°C (TJ).

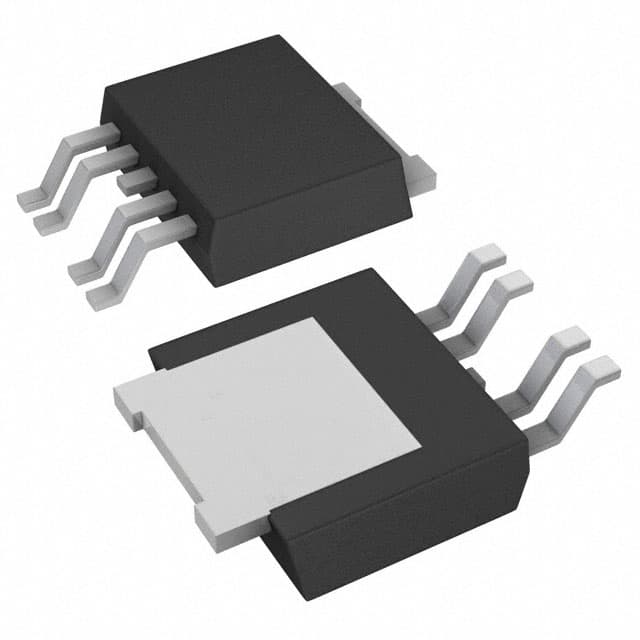

The VN750PTTR-E is designed for surface mounting and comes in a PPAK package, specifically TO-252-5, DPak (4 Leads + Tab), TO-252AD. It is supplied in Tape & Reel (TR) or Cut Tape (CT) packaging with a standard package quantity of 2500 units.

VN750PTTR-E Quick Information

Product Type: Power Distribution Switch/Load Driver

Series: VIPOWER™

Canonical Name: STMicroelectronics VN750PTTR-E Power Switch/Driver

Subcategory: PMIC - Power Distribution Switches, Load Drivers

VN750PTTR-E Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

VN750PTTR-E Estimated Pricing

Qty	Low	High
1+	$0.32	$0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

VN750PTTR-E Features

N-Channel power switch/driver.
6A maximum output current.
5.5V to 36V load voltage range.
Includes Auto Restart and Status Flag.
Surface mount PPAK package.

VN750PTTR-E Applications

Use for automotive load switching.
Ideal for industrial actuator control.
Suitable for lamp and motor drivers.
For general power distribution.

VN750PTTR-E FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating load voltage range?

5.5V to 36V.

What package does the VN750PTTR-E come in?

TO-252-5, DPak (4 Leads + Tab), TO-252AD.

What is the operating temperature range?

-40°C to 150°C (junction).

What fault protection features does the VN750PTTR-E have?

Current limiting (fixed), open load detect, over temperature, over voltage.

How many outputs does the VN750PTTR-E have?

1 output.

What is the control interface?

On/Off.

What is the output type?

N-Channel high side.
