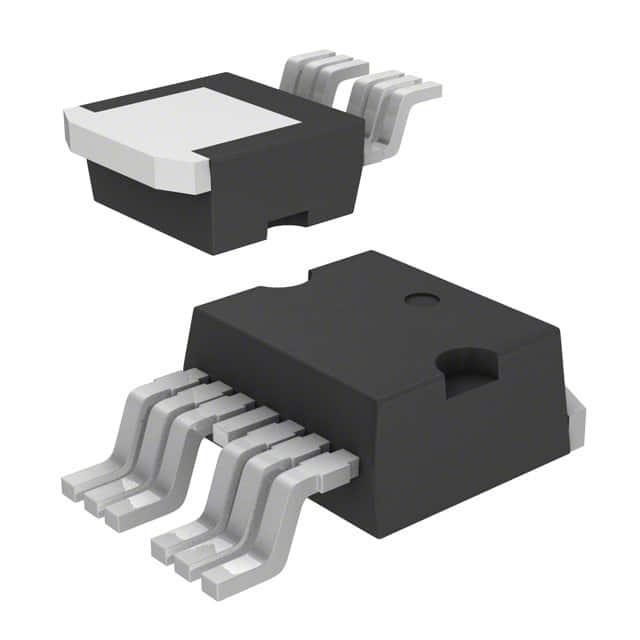

VN5T016AHTR-E The STMicroelectronics VN5T016AHTR-E is an N-Channel power distribution switch designed for general-purpose applications. It offers a high-side output configuration with a current rating of 43A.
Mfr Part #:

VN5T016AHTR-E

Available from 6 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics VN5T016AHTR-E is an N-Channel power distribution switch designed for general-purpose applications. It offers a high-side output configuration with a current rating of 43A.
✓ Total Stock: 73,362 pcs
$ Price Range: $0.32

VN5T016AHTR-E Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VN5T016AHTR-E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Supplier Package
Switch Type
Voltage
View Similar Products (0)

VN5T016AHTR-E Description

Short technical summary and product information.

The VN5T016AHTR-E from STMicroelectronics is a high-side N-Channel power distribution switch. It is designed for general-purpose applications and features a low on-resistance (Rds On) of 16 mOhm typical.



This device operates within a temperature range of -40°C to 150°C (TJ) and is available in a Surface Mount package, specifically the TO-252-7, DPak (6 Leads + Tab) format. The switch type is general purpose with an On/Off interface.



Key electrical characteristics include a 1:1 ratio, a single N-Channel output, and a maximum current handling capability of 43A. It also incorporates fault protection features such as current limiting, open load detection, over-temperature, and over-voltage protection.



The VN5T016AHTR-E is suitable for various power management applications where robust load driving and protection are required. Its surface-mount design facilitates integration into compact electronic systems.

VN5T016AHTR-E Quick Information

Product Type: Power Distribution Switch
Canonical Name: STMicroelectronics VN5T016AHTR-E N-Channel Power Distribution Switch
Subcategory: Load Drivers

VN5T016AHTR-E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VN5T016AHTR-E Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

VN5T016AHTR-E Features

  • N-Channel high-side power switch.
  • 43A current capability.
  • Low 16mOhm Rds On (Typ).
  • Surface mount TO-252-7 package.
  • Integrated fault protection features.

VN5T016AHTR-E Applications

  • For automotive power distribution systems.
  • Used in industrial load driving applications.
  • For high current switching with protection.
  • Suitable for 12V battery management systems.
  • For general purpose high side switching.

VN5T016AHTR-E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type for VN5T016AHTR-E?

TO-252-7, DPak (6 Leads + Tab) with HPAK supplier package.

What is the operating temperature range?

-40°C to 150°C.

What is the output current rating?

43A.

What is the typical Rds(on)?

16 mOhm.

What output configuration does this device have?

High side.

What fault protection features are included?

Current limiting (fixed), open load detect, over temperature, over voltage.

What is the ratio of the switch?

1:1.
