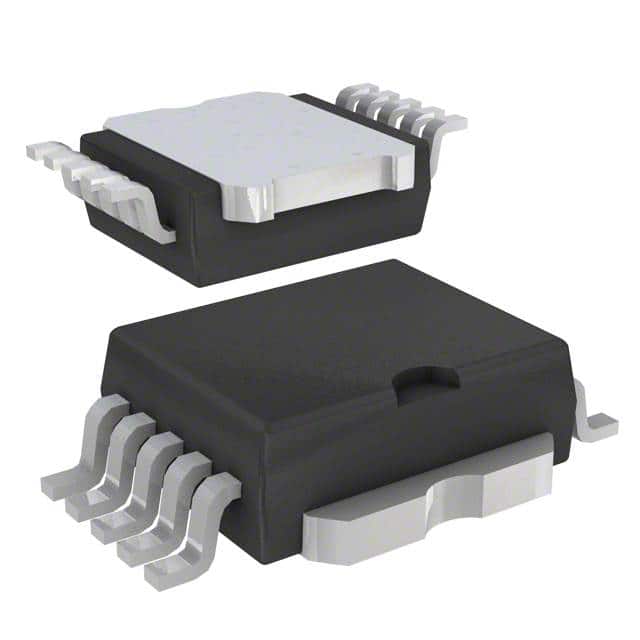

VN5T006ASPTR-E The STMicroelectronics VN5T006ASPTR-E is a general-purpose N-Channel power switch/driver. It features a high-side output configuration and operates with a load voltage range of 8V to 36V.
Mfr Part #:

VN5T006ASPTR-E

Available from 3 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics VN5T006ASPTR-E is a general-purpose N-Channel power switch/driver. It features a high-side output configuration and operates with a load voltage range of 8V to 36V.
✓ Total Stock: 101,200 pcs
$ Price Range: $0.32

VN5T006ASPTR-E Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
89,400 pcs
On Request
89400 pcs On Request 1 On Request On Request On Request On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Seba Components ✓
Non-Authorised Inventory information
1,800 pcs
On Request
1800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VN5T006ASPTR-E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Fault Protection
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
Voltage Supply
View Similar Products (0)

VN5T006ASPTR-E Description

Short technical summary and product information.

The VN5T006ASPTR-E from STMicroelectronics is an integrated circuit designed for power distribution and load driving applications. This component functions as a general-purpose N-Channel power switch with a high-side output configuration. It supports a wide load voltage range from 8V to 36V and offers a low typical Rds On resistance of 6mOhm.



The device is designed for surface mount installation, utilizing a 10-PowerSOIC package. Its interface is controlled via an On/Off signal, and it includes fault protection features such as fixed current limiting, open load detection, over-temperature, and over-voltage protection. The operating temperature range is specified from -40°C to 150°C (TJ).



This power switch/driver is suitable for various applications requiring robust power control and protection. Its specifications make it a versatile component for designs needing reliable switching and monitoring of power loads.

VN5T006ASPTR-E Quick Information

Product Type: Power Distribution Switch/Load Driver
Series: VIPOWER™
Canonical Name: VN5T006ASPTR-E Power Switch/Driver
Subcategory: PMIC - Power Distribution Switches, Load Drivers

VN5T006ASPTR-E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VN5T006ASPTR-E Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

VN5T006ASPTR-E Features

  • N-Channel high-side power switch/driver.
  • Operates with 8V to 36V load voltage.
  • Low 6mOhm typical Rds On.
  • Surface mount 10-PowerSOIC package.
  • Includes over-voltage and over-temperature protection.

VN5T006ASPTR-E Applications

  • Power load switching and control.
  • Automotive power management systems.
  • Industrial control applications.
  • General purpose power distribution.

VN5T006ASPTR-E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-40°C to 150°C (TJ).

What is the package type?

10-PowerSOIC (0.370", 9.40mm Width) with 10-PowerSO supplier device package.

What is the load voltage range?

8V to 36V.

What is the typical on-resistance?

6mOhm.

Is this a high-side or low-side switch?

High side.

What fault protection features does it have?

Current limiting (fixed), open load detect, over temperature, over voltage.

What is the input type?

Non-inverting.
