VN5E010AHTR-E The STMicroelectronics VN5E010AHTR-E is a high-side N-Channel power distribution switch. It features a current rating of 60A and a low Rds On of 10mOhm.
Mfr Part #:

VN5E010AHTR-E

Available from 5 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics VN5E010AHTR-E is a high-side N-Channel power distribution switch. It features a current rating of 60A and a low Rds On of 10mOhm.
✓ Total Stock: 131,880 pcs
$ Price Range: $0.32

VN5E010AHTR-E Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VN5E010AHTR-E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Features
Halogen Free
Input Type
Interface
Lead Spacing
Lead Style
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Storage Temperature
Supplier Device Package
Switch Type
Tape & Reel
Voltage
View Similar Products (0)

VN5E010AHTR-E Description

Short technical summary and product information.

The STMicroelectronics VN5E010AHTR-E is a power distribution switch designed for high-side N-Channel applications. It offers a robust current handling capability of 60A with a typical Rds On resistance of 10mOhm, ensuring efficient power delivery.



This device operates within a temperature range of -40°C to 150°C (TJ) and features auto-restart functionality. Fault protection includes current limiting, open load detection, over-temperature, and over-voltage protection, enhancing system reliability.

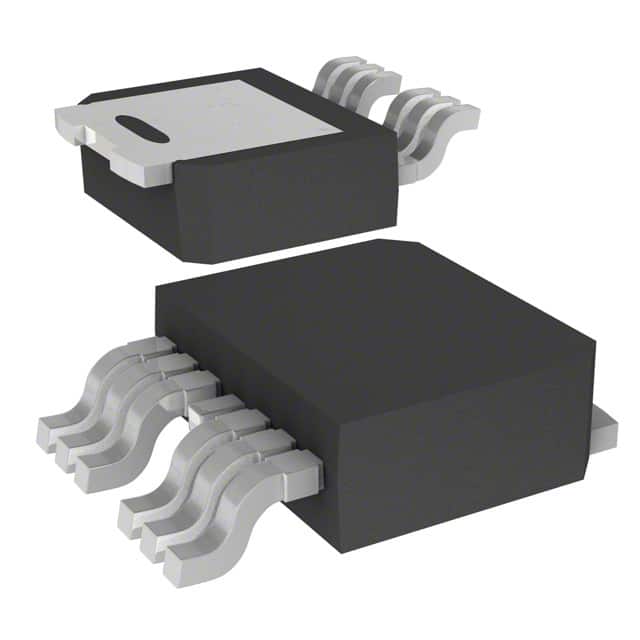

The VN5E010AHTR-E is supplied in a surface mount HPAK package, specifically TO-252-7, DPak (6 Leads + Tab), making it suitable for various PCB designs. Its interface is controlled via an On/Off signal, providing straightforward integration into power management systems.

VN5E010AHTR-E Quick Information

Product Type: Power Distribution Switch
Canonical Name: STMicroelectronics VN5E010AHTR-E Power Distribution Switch
Subcategory: Load Drivers

VN5E010AHTR-E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VN5E010AHTR-E Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

VN5E010AHTR-E Features

  • N-Channel high-side power switch.
  • 60A current capability.
  • Low 10mOhm Rds On.
  • Wide -40°C to 150°C operating temperature.
  • Surface mount TO-252-7 package.

VN5E010AHTR-E Applications

  • Ideal for high current load switching.
  • Suitable for power management circuits.
  • Used in systems requiring fault protection.
  • Applications needing efficient power control.

VN5E010AHTR-E FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the VN5E010AHTR-E?

The VN5E010AHTR-E has a current rating of 60A.

What is the Rds On (typical) for this power switch?

The Rds On (typical) for the VN5E010AHTR-E is 10mOhm.

What is the operating temperature range?

The operating temperature range is -40°C to 150°C (TJ).

What type of package is the VN5E010AHTR-E in?

It is supplied in a TO-252-7, DPak (6 Leads + Tab) package.

What fault protection features are included?

Fault protection includes Current Limiting (Fixed), Open Load Detect, Over Temperature, and Over Voltage.
