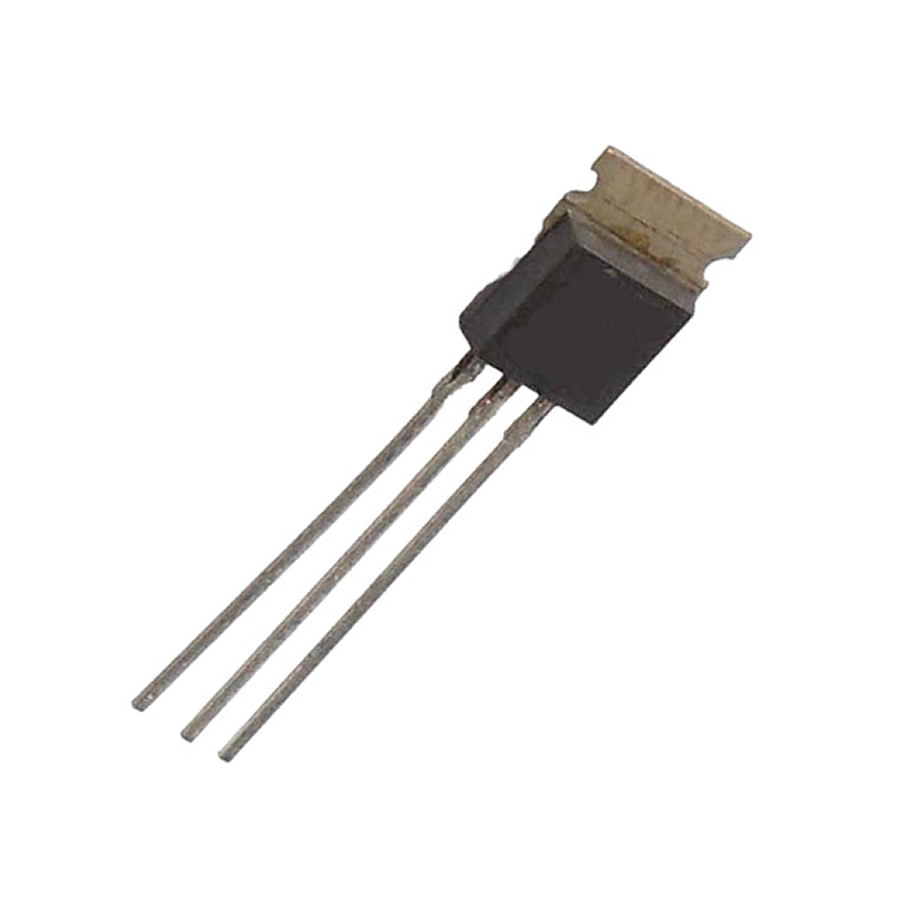

VN1210M The Siliconix VN1210M is an N-Channel Enhancement-Mode MOSFET transistor designed for high-speed circuits and low-voltage applications. It features a low on-resistance and fast switching speed.
Mfr Part #:

VN1210M

Available from 1 distributors
Mfr Name: SIL
SIL
The Siliconix VN1210M is an N-Channel Enhancement-Mode MOSFET transistor designed for high-speed circuits and low-voltage applications. It features a low on-resistance and fast switching speed.
✓ Total Stock: 210 pcs
$ Price Range: $2.27

VN1210M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
210 pcs
On Request
210 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VN1210M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Capacitance
Mounting Type
View Similar Products (0)

VN1210M Description

Short technical summary and product information.

The VN1210M from Siliconix is an N-Channel Enhancement-Mode MOSFET transistor. It is designed for applications requiring efficient switching and low on-resistance. Key electrical characteristics include a Drain-Source Breakdown Voltage of 120V and a Continuous Drain Current of up to 0.2A at 25°C.



This MOSFET offers a low Gate Threshold Voltage, making it easily driven without a buffer, suitable for direct logic-level interface with TTL/CMOS. Its fast switching speed of 10 ns and low input capacitance of 35 pF make it ideal for high-speed circuits. The device is available in a TO-237 package, suitable for surface mounting.



Applications for the VN1210M include driving relays, solenoids, lamps, and other loads in battery-operated systems and solid-state relays. Its low on-resistance and fast switching capabilities contribute to efficient power management in various electronic designs.

VN1210M Quick Information

Product Type: N-Channel MOSFET
Canonical Name: VN1210M N-Channel MOSFET
Subcategory: N-Channel

VN1210M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VN1210M Estimated Pricing

Qty Low High
1+ $2.27 $2.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

VN1210M Features

  • N-Channel Enhancement-Mode MOSFET
  • 120V Drain-Source Breakdown Voltage
  • Low On-Resistance
  • Fast Switching Speed: 10 ns
  • TO-237 Package

VN1210M Applications

  • Suitable for high-speed circuits
  • Ideal for battery-operated systems
  • Used for driving relays and solenoids
  • Direct logic-level interface capability

VN1210M FAQs

4 frequently asked questions generated from this part’s specifications.
What is the maximum continuous drain current for the VN1210M?

The maximum continuous drain current for the VN1210M is 0.2A at 25°C.

What is the breakdown voltage of the VN1210M MOSFET?

The Drain-Source Breakdown Voltage for the VN1210M is 120V.

What is the typical on-resistance of the VN1210M?

The typical Drain-Source On-Resistance for the VN1210M is 3.3 Ohms at VGS = 10V and ID = 0.5A.

What package type is the VN1210M available in?

The VN1210M is available in a TO-237 package.
