| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Insulation Resistance | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

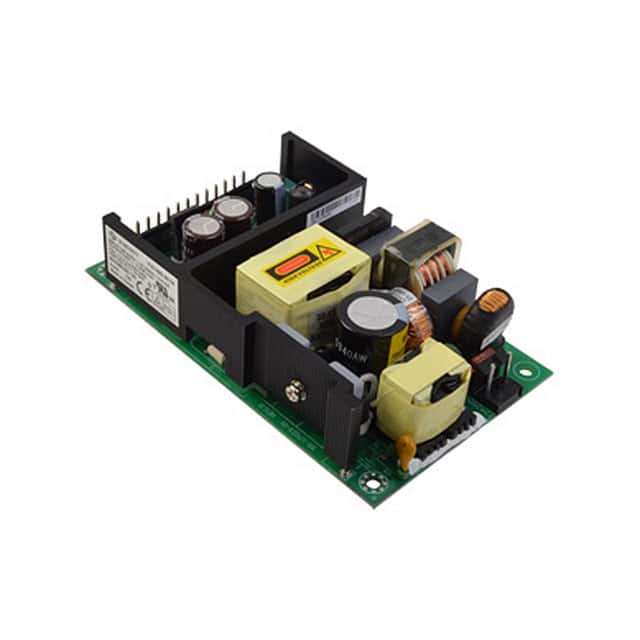

The CUI Inc. VMS-80-5 is an AC-DC power supply designed for various applications, including medical. It provides a single output of 5V with a maximum current of 14A, delivering up to 70W of continuous power.
Key features include a universal input voltage range of 90-260 Vac and an efficiency rating of up to 85%. The unit incorporates over-voltage, over-current, and short-circuit protections. It meets stringent safety standards with full medical safety approvals.
With a compact chassis mount design, the VMS-80-5 measures 127.0mm x 76.5mm x 27.9mm. It operates within a temperature range of 0°C to 70°C and has an MTBF of 100,000 hours at 25°C.
The output voltage of the VMS-80-5 is 5V.
The maximum output current for the VMS-80-5 is 14A.
The maximum power output of the VMS-80-5 is 70W.
The efficiency of the VMS-80-5 is typically 85%.
The input voltage range for the VMS-80-5 is 90-260 Vac.
The operating temperature for the VMS-80-5 is 0°C to 70°C, with derating from 50°C to 70°C.
The VMS-80-5 has CE, cURus, and TUV safety approvals.
