| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

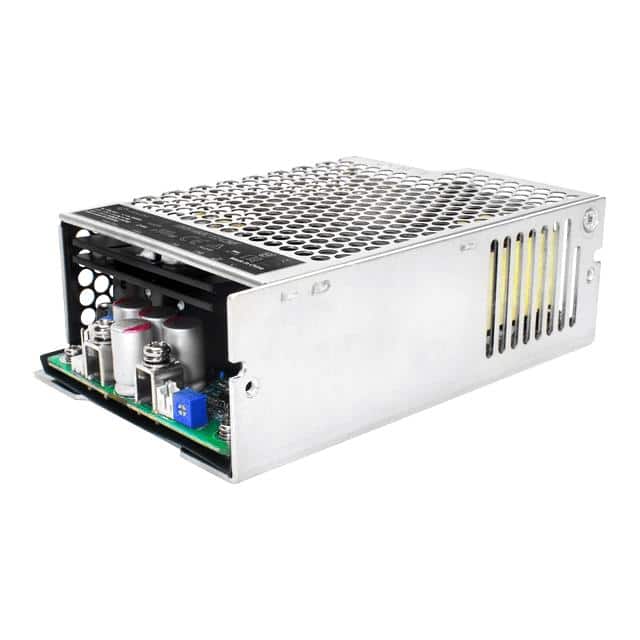

The CUI Inc. VMS-550C-48-CNF is an enclosed AC-DC power supply designed for industrial and medical applications. It provides a 48VDC output voltage with a maximum current of 11.46A, delivering up to 550W of power with forced air cooling.
This power supply operates with a universal input voltage range of 90-264 Vac or 127-370 Vdc and features active Power Factor Correction (PFC) for improved efficiency. It offers a wide operating temperature range of -40°C to 70°C, making it suitable for demanding environments. Key features include remote sense, standby output, and compliance with safety standards such as 60335 and 60601.
The unit is chassis mountable and has dimensions of 130.0mm x 86.0mm x 43.0mm. It is certified by CE, cURus, and UKCA, ensuring compliance with various international safety regulations. The VMS-550C-48-CNF is designed for applications requiring reliable power conversion in commercial and medical settings.
The output voltage is 48 Vdc.
The maximum output current is 11.46 A.
The maximum output power is 550 W with forced air cooling.
The input voltage range is 90-264 Vac and 127-370 Vdc.
The operating temperature range is -40°C to 70°C.
It is certified to 60601 safety standard and designed to meet 60335 & 61558 safety requirements.
It uses chassis mount.
