| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

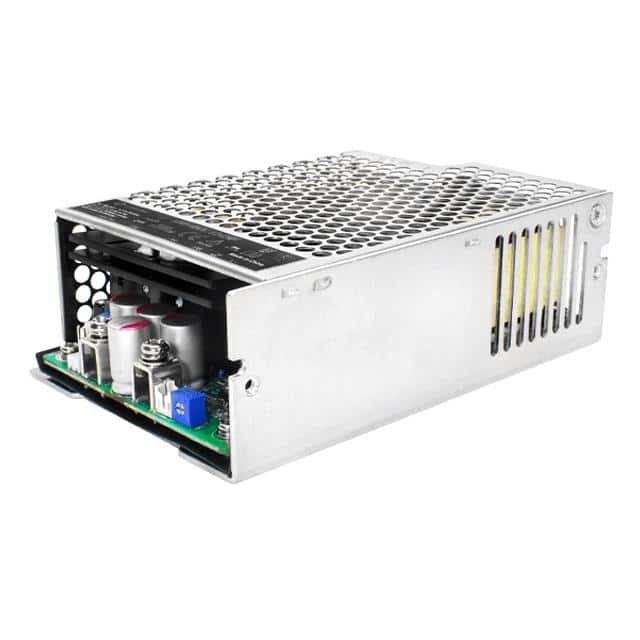

The CUI Inc. VMS-450C-15-CNF is an enclosed AC-DC power supply designed for various applications. It features a 15V output voltage and can deliver up to 26.7A of current, with a maximum power output of 401W. The input voltage range is wide, spanning from 90 to 264 Vac, and it also supports DC input from 127 to 370 Vdc.
This power supply operates within a temperature range of -40°C to 70°C, with derating. It includes essential protections such as over-voltage, over-current, short-circuit, and over-temperature protection. The unit is certified to 60601-1 and designed to meet 60335-1 safety requirements, making it suitable for ITE (Commercial) and Medical applications.
With a 3" x 5" footprint (130.0mm x 86.0mm x 43.0mm), it is designed for chassis mounting. Key electrical specifications include a typical efficiency of 92.0% at 230 Vac, a hold-up time of 12ms at 115 Vac and 16ms at 230 Vac, and active power factor correction.
The output voltage is 15 Vdc.
The maximum output current is 26.70 A.
The maximum output power is 401W.
The input voltage range is 90-264 Vac and 127-370 Vdc.
The operating temperature range is -40°C to 70°C (With Derating).
The dimensions are 130.0mm (Length) x 86.0mm (Width) x 43.0mm (Height).
It is certified to 60601-1 and designed to meet 60335-1.
