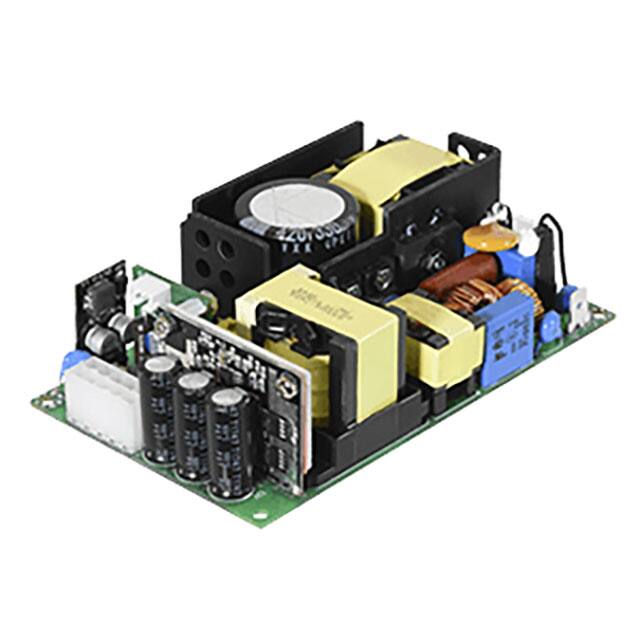

The CUI Inc. VMS-450B-48 is an AC-DC power supply designed for various applications. It delivers up to 450W of continuous power with a 48VDC output voltage and a maximum output current of 9.4A.
Key electrical specifications include a universal input voltage range of 100-240 Vac and an efficiency of 92% typical. The power supply incorporates power factor correction (PFC) and offers protections such as over-voltage, over-current, and short-circuit.
This open-frame unit features a chassis mount type and industry-standard dimensions of 5.00" x 3.00" x 1.26". It also includes a 12 Vdc fan output and a 5 Vdc auxiliary output for added functionality.
The VMS-450B series is certified to IEC/EN/UL 60601-1 safety standards, making it suitable for medical applications. It operates within a temperature range of -20°C to 70°C with derating.
100 to 240 Vac.
48 Vdc at 9.4 A maximum.
92% typical.
Over voltage (150%), over current (130%), short circuit (auto recovery), and over temperature (shutdown).
Yes, remote on/off is available. On: open or short to 5V, Off: short to DC RTN.
-20°C to 70°C with derating.
Open frame, chassis mount.
