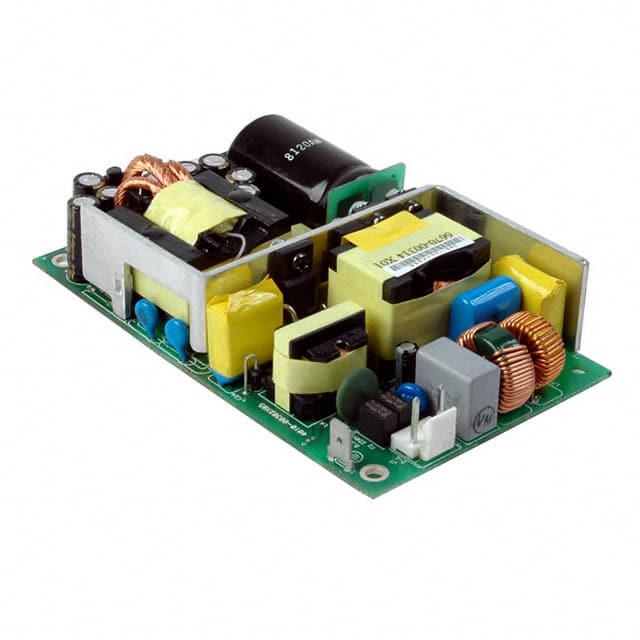

The CUI Inc. VMS-365-48 is an AC-DC power supply from the VMS-365 series, delivering a single 48V output with a maximum current of 7.6A, providing up to 365W of continuous power. It features a universal input range of 85-264 Vac or 125-373 Vdc and operates with an efficiency of up to 90%.
Designed for demanding applications, this power supply includes features such as active power factor correction (PFC), over-load, over-voltage, and short-circuit protections. It also offers a 12V auxiliary fan output and a 5V standby output. The unit meets industry standards with its 3" x 5" footprint and 18 W/in³ power density.
This power supply is suitable for medical and ITE applications, with full safety approvals including UL, VDE, CE, and CCC. It has a chassis mount type and operates within a temperature range of -20°C to 70°C with derating. The isolation voltage is rated at 5,656 Vdc.
The VMS-365-48 has an output voltage of 48 Vdc.
The maximum output current for the VMS-365-48 is 7.6 A.
The VMS-365-48 can deliver a maximum output power of 365 W.
The typical efficiency of the VMS-365-48 is 90%.
The VMS-365-48 accepts a universal input voltage range of 90-264 Vac or 125-373 Vdc.
The VMS-365-48 operates within a temperature range of -20°C to 70°C, with derating.
Yes, the VMS-365-48 is RoHS3 Compliant.
