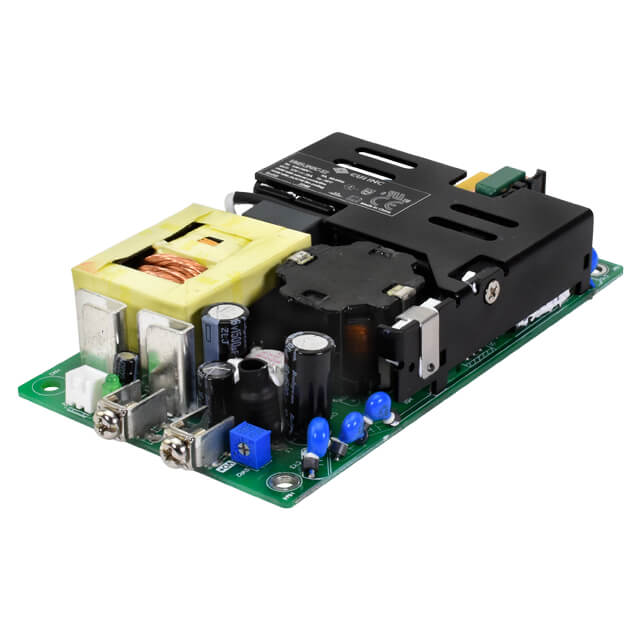

The CUI Inc. VMS-350C-24 is an open frame AC/DC converter designed for external or internal use. It delivers a power output of 350W with a single 24V output voltage.
Key electrical specifications include a wide input voltage range of 90-264 VAC and an efficiency rating of 93%. The converter also features adjustable output and standby output capabilities, along with universal input voltage support.
Designed for versatility, the VMS-350C-24 has an isolation voltage of 4 kV and is approved by CE and cURus. Its operating temperature range is -40°C to 70°C with derating. The dimensions are 127.0mm x 76.2mm x 25.4mm.
This AC/DC converter is suitable for applications in household appliances and medical devices. It is chassis mounted and supplied in a tray package.
The output voltage is 24V.
The power rating is 350W.
The input voltage range is 90-264 VAC and 127-370 VDC.
The operating temperature range is -40°C to 70°C with derating.
It uses chassis mount.
Key features include adjustable output, standby output, and universal input.
It is suitable for household appliances and medical applications.
