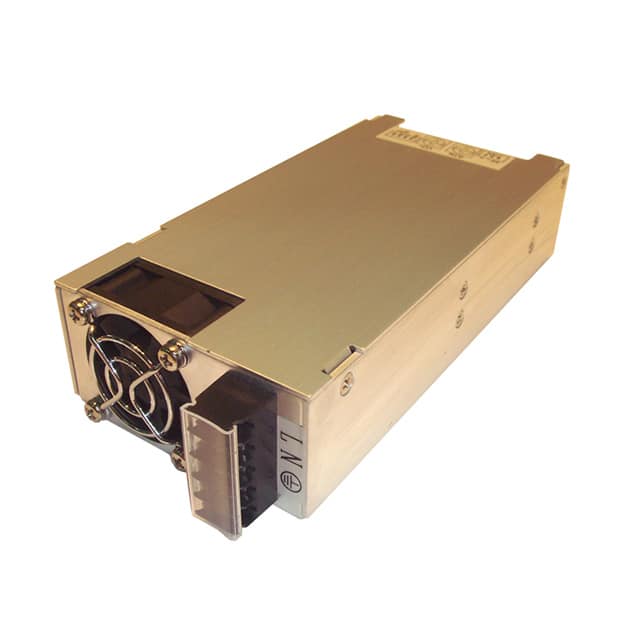

The CUI Inc. VMS-300-D0512-CFS is an enclosed AC/DC converter designed for various applications, including medical use. It provides a power output of 120W, with a specific output voltage of 12V and a current rating of 10A. The converter operates with 80% efficiency and features adjustable output, Power Factor Correction (PFC), remote on/off functionality, and a standby output.
Designed for robust integration, this unit utilizes chassis mounting and has dimensions of 165.1mm in length, 81.3mm in width, and 40.6mm in height. It supports a universal input voltage and operates within a temperature range of 0°C to 70°C, with derating applied. The VMS-300-D0512-CFS is compliant with multiple safety and EMC standards, including CB Scheme, CSA, EN, IEC, and TUV, and meets standards such as C22.2 No. 60601-1 and 61000-3-2.
Key features include its enclosed type, making it suitable for environments requiring protection. The unit also boasts a number of outputs, specifically two, and includes features like remote on/off and standby output for enhanced control and power management. Its compliance with RoHS3 and an MSL of 1 further indicate its suitability for a wide range of electronic designs.
The VMS-300-D0512-CFS is an enclosed AC/DC converter.
This converter is designed for chassis mounting.
The VMS-300-D0512-CFS provides 120W of power, with a forced air rating of 240W.
The operating temperature range is 0°C to 70°C, with derating.
Key features include adjustable output, PFC, remote on/off, standby output, and universal input.
