| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

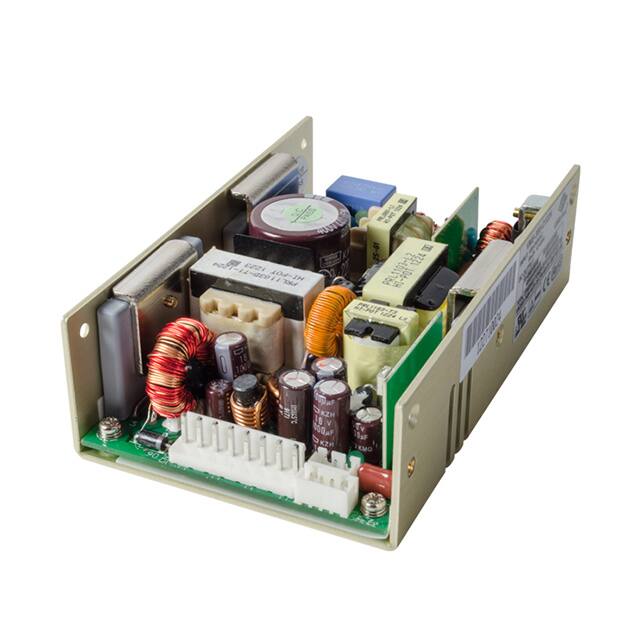

The CUI Inc. VMS-300-D0512 is an AC/DC converter designed for various applications, including medical. It provides two output voltages: 5V and 12V, with a maximum output current of 24A for the 5V rail and 13.33A for the 12V rail. The converter delivers 120W of power, expandable to 240W with forced air cooling.
Key features include adjustable output, power factor correction (PFC), remote on/off capability, and standby output. It operates with a universal input voltage range of 90 to 264 VAC and offers an isolation voltage of 4.0kV. The efficiency is rated at 80%.
This converter is chassis mountable and comes in an enclosed type. Its dimensions are 127.0mm x 81.3mm x 38.1mm. The operating temperature range is 0°C to 70°C with derating. It meets various safety and EMC standards, including CB Scheme, CSA, EN, IEC, and TUV, and complies with standards such as C22.2 No. 60601-1 and 61000-3-2.
The VMS-300-D0512 has two output voltages: 5V and 12V.
The VMS-300-D0512 provides 120W of power, which can be increased to 240W with forced air.
The efficiency of the VMS-300-D0512 is 80%.
The operating temperature range is 0°C to 70°C, with derating applied.
It supports a universal input voltage range of 90 to 264 VAC.
The dimensions are 127.0mm in length, 81.3mm in width, and 38.1mm in height.
It has approvals from CB Scheme, CSA, EN, IEC, and TUV.
