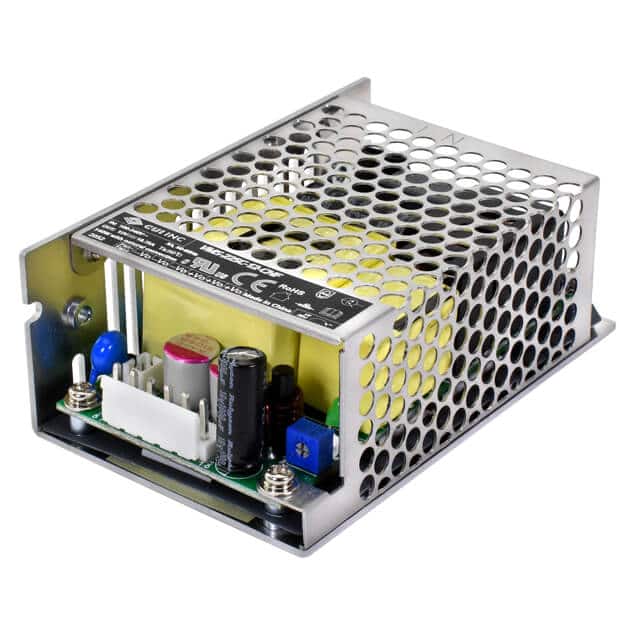

The CUI Inc. VMS-225C-36-CNF is an enclosed AC-DC power supply designed for versatile applications. It delivers a continuous output power of 225W with a nominal output voltage of 36V.
This power supply accepts a universal input voltage range of 85 to 264 Vac and features active power factor correction, achieving a typical efficiency of 94% at 230 Vac. It includes comprehensive protections such as over voltage, over current, over temperature, and short circuit protection for reliable operation.
Designed for chassis mounting, the VMS-225C-36-CNF is suitable for safety class I or class II installations. Its compact dimensions (103.4mm x 62.0mm x 37.0mm) and operating temperature range of -40°C to 70°C make it adaptable to various environments. The unit is certified to 60601, 60335, and 61558 safety standards.
The output voltage for the VMS-225C-36-CNF is adjustable within the range of 35.2 to 37.8 Vdc.
The maximum output current is 6.25 A.
The maximum output power is 225W.
The AC input voltage range is 85 to 264 Vac.
The operating temperature range is -40°C to 70°C, with derating.
It is certified to 60601, 60335, and 61558 safety standards.
