| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

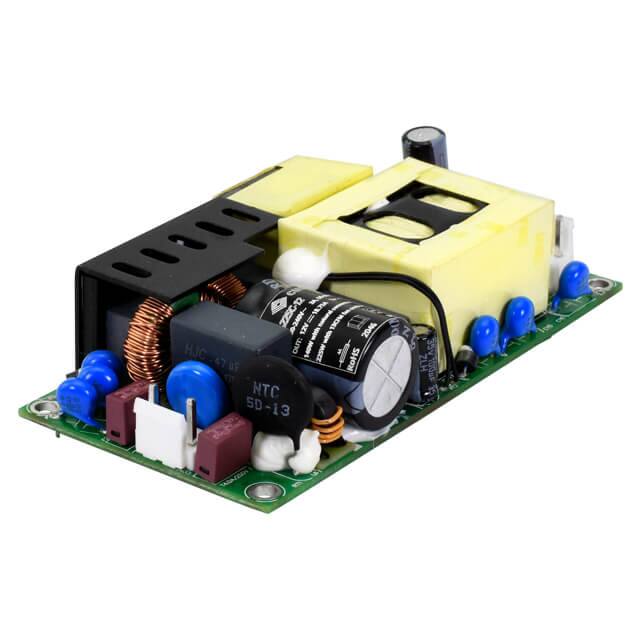

The CUI Inc. VMS-225C-36 is an open-frame AC-DC power supply designed for various applications. It delivers a 36V output at up to 6.25A, providing a total power of 225W. The unit operates with a universal input voltage range of 85-264 Vac and features active power factor correction, achieving a typical efficiency of 94% at 230 Vac.
Key features include over voltage, over current, over temperature, and short circuit protections, ensuring reliable operation. It also offers adjustable output via a trim POT and low leakage current (< 0.1 mA). The VMS-225C-36 is certified to safety standards 60601-1 and 60335-1, making it suitable for household appliances and medical applications. Its compact dimensions of 101.6mm x 50.8mm x 25.4mm allow for flexible integration into systems.
This power supply is designed for chassis mounting and supports safety class I or class II installations. It operates within a wide temperature range of -40°C to 70°C with derating. The VMS-225C-36 is an ideal choice for applications requiring a stable and efficient power source with robust protection features.
The output voltage is 36 Vdc.
The maximum output current is 6.25 A.
The maximum power output is 225W.
The typical efficiency is 94% at 230 Vac.
The universal input voltage range is 85 ~ 264 Vac.
The operating temperature range is -40°C to 70°C, with derating.
It is certified to 60601-1 and 60335-1 safety standards.
