| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

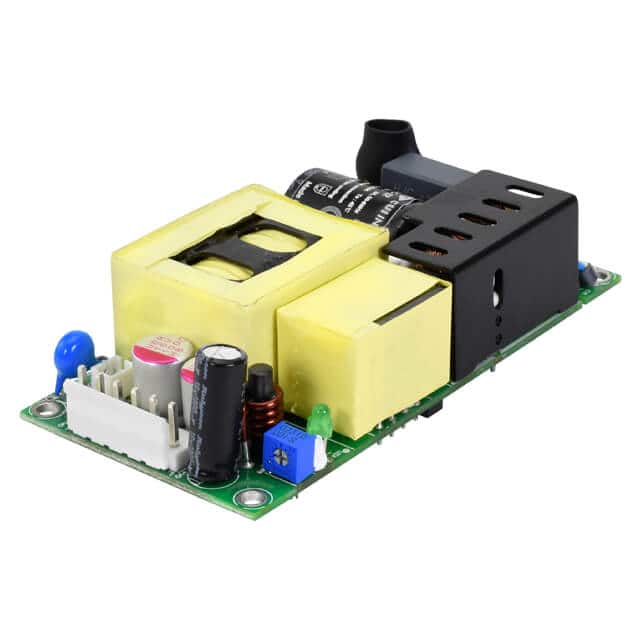

The CUI Inc. VMS-200C-48 is an open-frame AC-DC power supply designed for demanding applications. It delivers a robust 200W of power with a nominal 48VDC output voltage and a maximum output current of 4.16A.
This power supply operates with a universal input voltage range of 85-264 Vac and boasts a high efficiency of 94% at 230 Vac. It incorporates active power factor correction and features protections such as over-voltage, over-current, over-temperature, and short-circuit.
Designed for versatility, the VMS-200C-48 is suitable for safety class I or class II installations and can be chassis mounted. Its compact dimensions (101.6mm x 50.8mm x 25.4mm) make it ideal for integration into various systems, including household appliances and medical equipment.
The VMS-200C-48 has a nominal output voltage of 48 Vdc.
The maximum output current for the VMS-200C-48 is 4.16 A.
The VMS-200C-48 accepts a universal input voltage range of 85 to 264 Vac.
The typical efficiency of the VMS-200C-48 is 94% at 230 Vac.
The VMS-200C-48 operates within a temperature range of -40°C to 70°C, with derating.
The VMS-200C-48 is certified to 60601, 60335, and 61558 safety standards.
