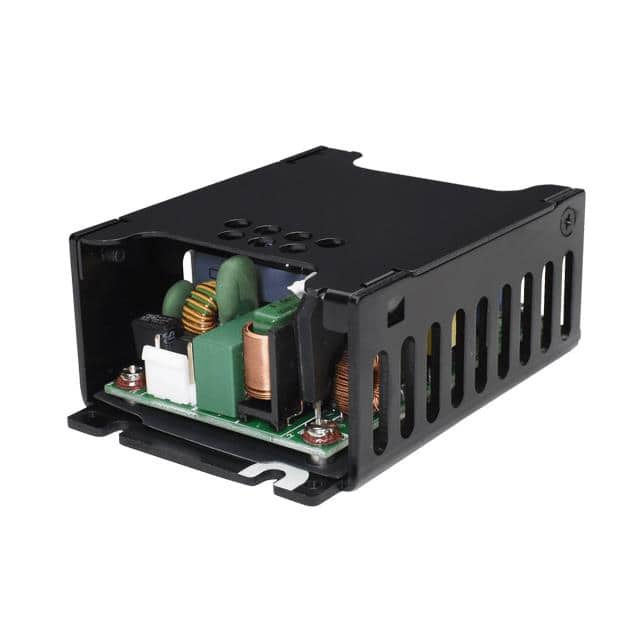

The CUI Inc. VMS-130-12-CNF is an enclosed AC-DC power supply designed for various applications, including medical use. It delivers a 12V output voltage with a maximum current of 10.8A, providing up to 130W of power with forced air cooling or 100W with natural convection.
This power supply operates within a wide input voltage range of 80-264 Vac and features active Power Factor Correction (PFC). Key electrical specifications include a typical efficiency of 93% at 75% load, line regulation of ±0.5%, and load regulation of ±1%. It also includes over-voltage and short-circuit protection.
The VMS-130-12-CNF is built with a chassis mount design and measures 91.4mm x 64.0mm x 34.5mm. It is approved to IEC 60601-1 standards and meets Class I & Class II safety requirements, making it suitable for demanding environments. The operating temperature range is -30°C to 70°C with derating.
The input voltage range is 80-264 Vac at 47-63 Hz.
The converter is an enclosed chassis mount package measuring 91.4 x 64.0 x 34.5 mm.
The operating temperature range is -30°C to 70°C with derating.
The output power is 130W with forced air cooling (10 CFM) and 100W with natural convection.
It has CE, cURus, UKCA approvals and meets medical standard IEC 60601-1.
Over voltage protection (13.5 Vdc) and short circuit protection with auto recovery hiccup mode.
Efficiency is 93% typical at 230 Vac, 25°C, 75% load.
